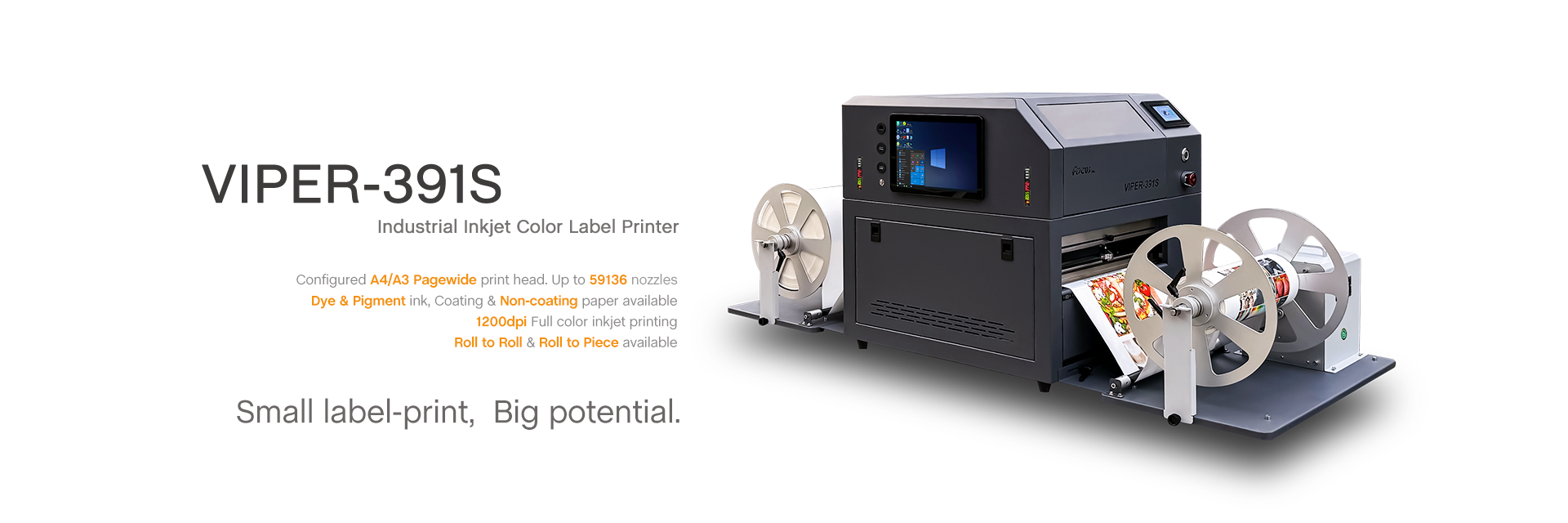

Focus Viper-391S Single Pass Full Color Inkjet Label Printer Digital Industrial Roll Label Printing Machine

Item No.: FS-VP-391
Focus Viper-391S Desktop full color inkjet label printer, Single pass printer, With one or two Pagewide bubble-jet print head. match the fast speed to 17meter/Min, with unwinder rewinder avaliable
Description SPECIFICATION DEMO VIDEO ONLINE TUTORIAL

Why Choose the Acaleph-891s UV Printer?


  • High-Speed Printing: Print up to 17 meters per minute with 42,240 inkjet nozzles, delivering both speed and precision.
  • Vivid, Durable Labels: Achieve sharp, vibrant labels with water-resistant pigment inks and 1200x2200 dpi resolution, perfect for extreme conditions.
  • User-Friendly Operation: Easy-to-use 11" touch screen, built-in help, and hassle-free media loading with advanced laser alignment.
  • Cost-Efficient & Flexible: Refillable 500ml ink tanks, adaptable to various media sizes from A4 to A3, reduce operational costs.
  • Integrated Software & Hardware: No RIP software is required.
  • Worry-Free: 13-Month Warranty. Inquiry Today to Unlock an Extra Free Month of Warranty.


Demo Video:



Focus Viper-391s Label printer Print process video


Focus Viper-391s Label printer Variable data Barcode printing & Roll to Cut demo



Overview:


The new Focus Inc. Viper-391s Color label printer is a versatile, affordable, high-speed color label printer offering quick turnaround of on-demand, short, and mid-run labels.

The Focus Inc. was engineered with quality and performance in mind from the ground up. It is built on advanced HP PageWide™ technology similar to that found in high-end digital presses, making it the most advanced full-color Focus label printer available. It's ideal for a growing business needing a durable in-house label printing system. At speeds up to 17 meters per minute, the Viper-391s quickly produces high-quality, durable labels, improving operational productivity and eliminating excess inventory. Your labels will hold up under extreme conditions.

The large 11" user-friendly touch screen optional and built-in help options make the Focus Viper-391s  simple to operate and maintain. The durable and lightweight aluminum construction and small footprint make it ideal for the factory floor. You can be assured of a low cost of ownership and easy, trouble-free operation for years to come.

The Focus Inc. offers extreme flexibility for label production. Print labels in any width from A4 to A3 size width on roll-fed or fanfold media to create brilliant labels. Water-resistant pigment inks ensure that your labels meet international standards for adhesion, resistance to abrasion, saltwater immersion, and UV exposure for chemical applications. With a print resolution of up to 1200x2200 dpi, colors pop, and graphics look sharp on your finished labels regardless of the application. Also, it is supposed to print with dye ink for vivid color and lower-cost color label printing.

With print speeds of up to 17 meters per minute, the Focus Viper-391s  is a commercial-grade inkjet printer that can complete short and medium runs with ease producing stunning full-color labels in mere minutes.

Refill ink tanks instead of cartridges keep your printer running at a lower cost and increase productivity.
The Focus Viper-391s label printer offers easy media loading and smooth operation. Choose from a wide range of qualified label media.

There is no need to invest in new label design software such as Rip, As the Focus viper-391s join the Rip and printing software all in one.

With a Flatbed paper feeding system to make exchange roll material easier and faster.

Adapted with 4 red laser guidlines to make printer unload and reload with high precision without overlap. Electronic unwinder and rewinder as a standard configuration.


Specification:


Focus Inc.Viper-391s Series Industrial Inkjet Color Label Printer Specifications
Item  Viper 391s-A4 Viper 391s-A3
     Maximum printing area 8.26" (210mm*Y no limited) 12" (304mm*Y no limited)
     Print head    1pcs HP A4 Pagewide Print Head   1pcs HP A3 Pagewide Print Head
     Print Nozzle Ammount    42240 Nozzles (4224*10 Rows)    59136 Nozzles (4224*14 Rows)
Printing method    Hp Pagewide Bubble-Jet Print Technology
Print resolution (dots per inch)    1200*300dpi, 1200*400dpi, 1200*600dpi, 1200*1200dpi, 1200*2200dpi
Print Head protection technology    Carriage anti-scratch kit
    Print speed    10~40meter/min (According to different resolution)
    Media size     Maximum load width    12.6",  320mm
Maximum thickness   ≤φ350mm
Roller Inner diameter   φ75mm,  φ40mm,  φ25mm
    Media type    Focus Inc. Approved media; Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET);  Glossy, Matt
    Media margin aligment    4pcs Automatic Laser guideline margin + Margin Rule Aligment
    Media Process     Roll to Roll / Roll to Cut (*Optional) / Print-Hold
    Media Feeding    Unwinder, Rewinder; Self-Tenssion Control / Pieces Holder
    Sensor Type    Gap / Reflective sensor for black mark (*Optional)
    RIP Software    Control &Rip All in one (Included)
    Job format     Tiff, Png, Jpeg, Pdf...
    Control interface     3.5"  LED Touch Screen + 10.1" LED Touch Computer (*Optional)
Ink Type    Aqueous, Dye,Pigment, Edible
Color    Black, Cyan, Magenta, Yellow
Ink tank capacity    500ml per each color, Refill
Dimensions Printer only    24.7 (L) × 23.5 (W) × 23.6 (H) in.   (629 × 598× 600 mm)  Main printer
Unwinder, Rewinder size    13.0 (L) × 26.1 (W) × 14.3 (H) in.   (330 × 664 × 364 mm)  /One
Packing size    57.0 (L) × 33.6 (W) × 29.1 (H) in.  (1,448 × 854× 740 mm)  All
Weight Net weight    143 lb (65kg) Printer only;   112lb (51Kg)Unwinder+Rewinder
Packing weight    341 lb (155 kg)  All
Environment Temperature    59 to 86 °F (15 to 30 °C)
Humidity    40 to 80 %
Included items    Print cable, Cleaning kit, USB Flash of manuals and installation videos
Connectivity    Ethernet cable
Power requirements    9A, Single-phase 220V, 50~60HZ;
Acoustic noise level    75 dB (A) or less

Software System Requirements
Print control System    Windows® 7/10/11(64 bit)  Recommend
(Bundled) CPU    Intel® Core™ i5, 2.5 GHz or more
RAM    8 GB or more
Video card and monitor    A resolution of 1,152 × 854 with 16 bit color or higher
HDD    Install space 1 GB or more
   Working space 100 GB
*Note: Technical instructions subject to change without notice.



Dimensioned Drawing:




Technical Feature:



1. Thanks to Hp pagewide printing technology with 42,240 amount of high-speed inkjet nozzles enable high-speed and high-resolution printing.


2. Industrial Touch screen with PLC allows for faster and easier printer operation.


3. Touch screen computer add-on simplifies printer operation.

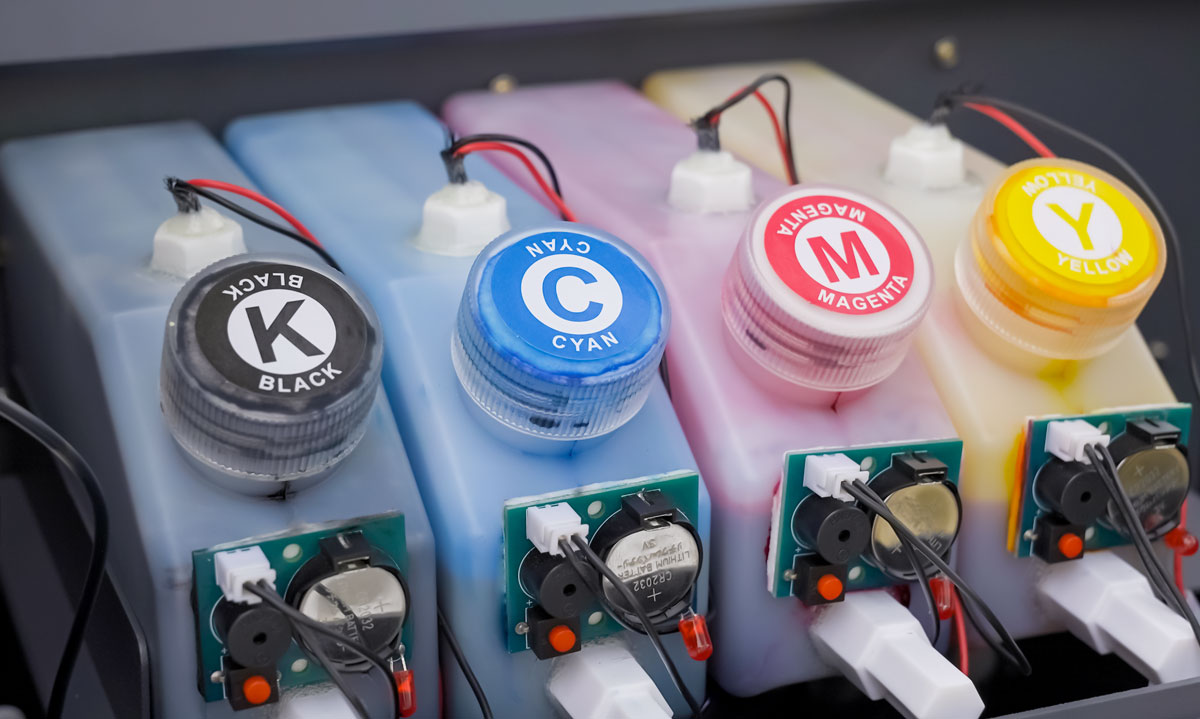

4. The 500ml large-capacity refillable ink tank with ink shortage alarm ensures continuous high-speed printing.


5. Installed degassing sub tank can degass air on ink supply system to achieve stable printing.


6. Powerful control board enables high-speed and high-quality inkjet printing.


7. High-quality Gap Reflective sensor can print on pre-cut labels with sectional gaps.

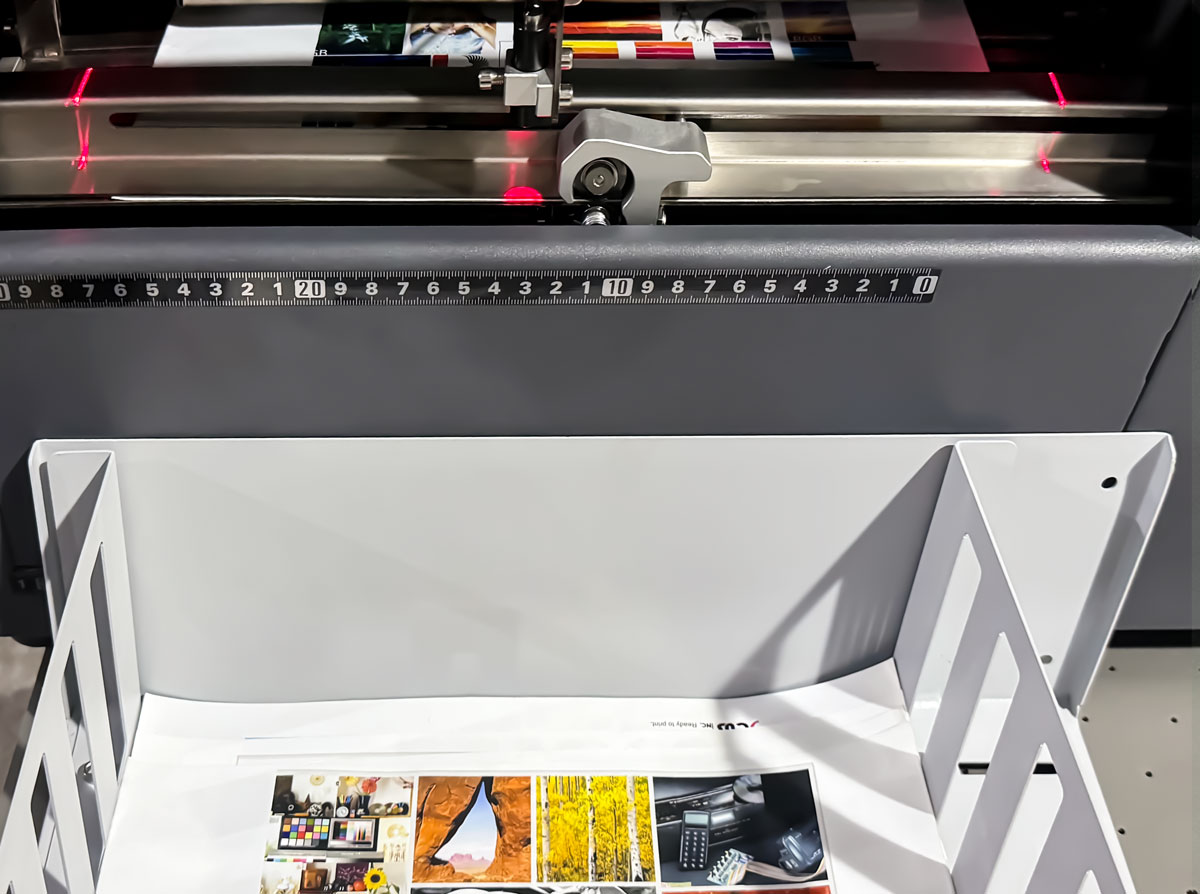

8. Roll-to-pieces media holder organizes the media after cutting.

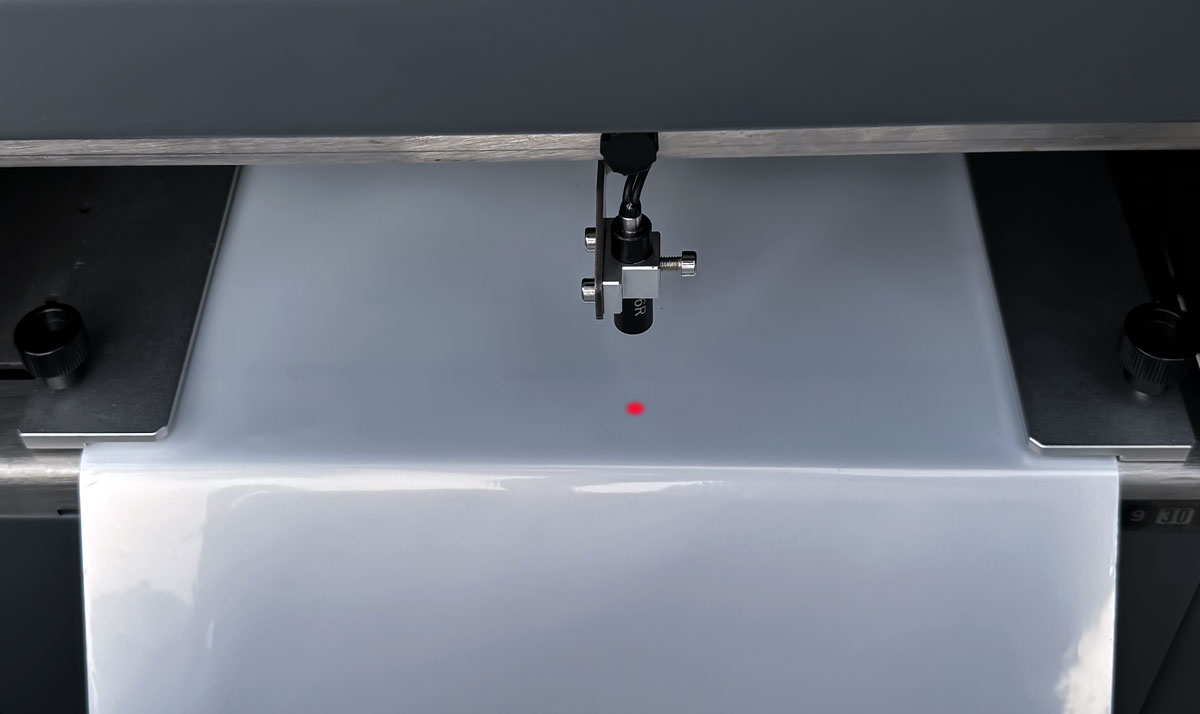

9. High-quality margin laser sensor can align the media under several seconds.


10. Self-tension control rewinder balances label tension for stable release and take-up.


11. High-quality media sensor detects various media types such as glossy, matte, silver, and gold.

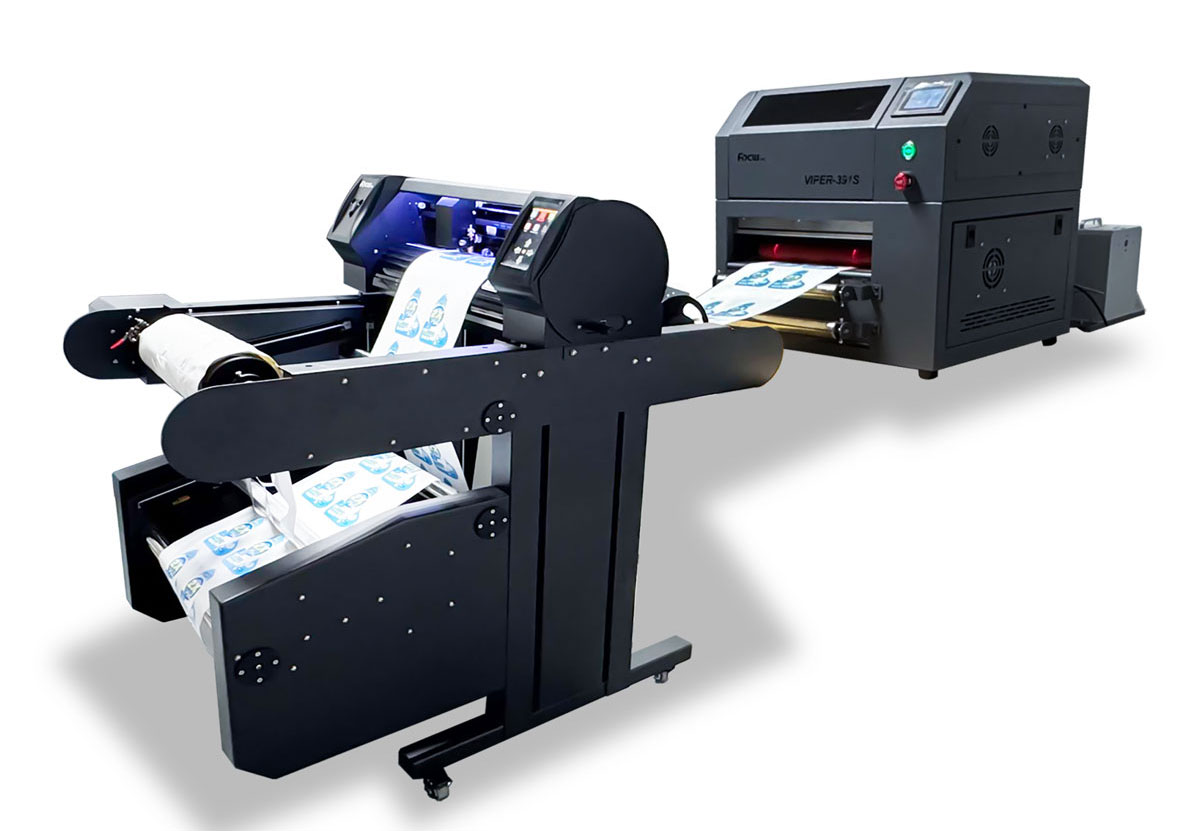

12. Mark reflective sensor combined with the cutting system achieves roll-to-pieces cutting functionality.




Print sample:












 If you don't know how to operate the Focus Viper-391s digital inkjet label printer?
Please check the online tutorial video step by step as follow:

Online Tutorial video 1~10

Feel free to inquire Now to get all 10 tutorial videos!


Meet Focus Team




Certificate of Focus Inc.
  * A company own" China National high-tech enterprise" award

Some of invention patent certificate own by Focus inc.



  SEND INQUIRY TO US NOW

                     Focus Inc.Viper-391s Series Industrial Inkjet Color Label Printer Specifications

Focus Inc.Viper-391s Series Industrial Inkjet Color Label Printer Specifications
Item  Viper 391s-A4 Viper 391s-A3
     Maximum printing area 8.26" (210mm*Y no limited) 12" (304mm*Y no limited)
     Print head    1pcs HP A4 Pagewide Print Head   1pcs HP A3 Pagewide Print Head
     Print Nozzle Ammount    42240 Nozzles (4224*10 Rows)    59136 Nozzles (4224*14 Rows)
Printing method    Hp Pagewide Bubble-Jet Print Technology
Print resolution (dots per inch)    1200*300dpi, 1200*400dpi, 1200*600dpi, 1200*1200dpi, 1200*2200dpi
Print Head protection technology    Carriage anti-scratch kit
    Print speed    10~40meter/min (According to different resolution)
    Media size     Maximum load width    12.6",  320mm
Maximum thickness   ≤φ350mm
Roller Inner diameter   φ75mm,  φ40mm,  φ25mm
    Media type    Focus Inc. Approved media; Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET);  Glossy, Matt
    Media margin aligment    4pcs Automatic Laser guideline margin + Margin Rule Aligment
    Media Process     Roll to Roll / Roll to Cut (*Optional) / Print-Hold
    Media Feeding    Unwinder, Rewinder; Self-Tenssion Control / Pieces Holder
    Sensor Type    Gap / Reflective sensor for black mark (*Optional)
    RIP Software    Control &Rip All in one (Included)
    Job format     Tiff, Png, Jpeg, Pdf...
    Control interface     3.5"  LED Touch Screen + 10.1" LED Touch Computer (*Optional)
Ink Type    Aqueous, Dye,Pigment, Edible
Color    Black, Cyan, Magenta, Yellow
Ink tank capacity    500ml per each color, Refill
Dimensions Printer only    24.7 (L) × 23.5 (W) × 23.6 (H) in.   (629 × 598× 600 mm)  Main printer
Unwinder, Rewinder size    13.0 (L) × 26.1 (W) × 14.3 (H) in.   (330 × 664 × 364 mm)  /One
Packing size    57.0 (L) × 33.6 (W) × 29.1 (H) in.  (1,448 × 854× 740 mm)  All
Weight Net weight    143 lb (65kg) Printer only;   112lb (51Kg)Unwinder+Rewinder
Packing weight    341 lb (155 kg)  All
Environment Temperature    59 to 86 °F (15 to 30 °C)
Humidity    40 to 80 %
Included items    Print cable, Cleaning kit, USB Flash of manuals and installation videos
Connectivity    Ethernet cable
Power requirements    9A, Single-phase 220V, 50~60HZ;
Acoustic noise level    75 dB (A) or less

Software System Requirements
Print control System    Windows® 7/10/11(64 bit)  Recommend
(Bundled) CPU    Intel® Core™ i5, 2.5 GHz or more
RAM    8 GB or more
Video card and monitor    A resolution of 1,152 × 854 with 16 bit color or higher
HDD    Install space 1 GB or more
   Working space 100 GB
*Note: Technical instructions subject to change without notice.



       Dimensioned Drawing:


Focus Viper-391s Inkjet Label printer Demo Video



1. Focus Viper-391s Label printer Print process video:




2. Focus Viper-391s Label printer Variable data Barcode printing & Roll to Cut demo:







Focus Viper-391S Full color inkjet label printing machine online tutorial Video:

1. Online tutorial 1. Preface


Online tutorial 2. Spare parts instruction


Online tutorial 3. Printer function instruction


Online tutorial 4. Release printer


Online tutorial 5. Fill ink and degassing air


Online tutorial 6. Load paper to printer


Online tutorial 7. Nozzle check and head clean


Online tutorial 8. Print head aligment


Online tutorial 9. Daily maintenance


Online tutorial 10. How to exchange Hp pagewide print head
