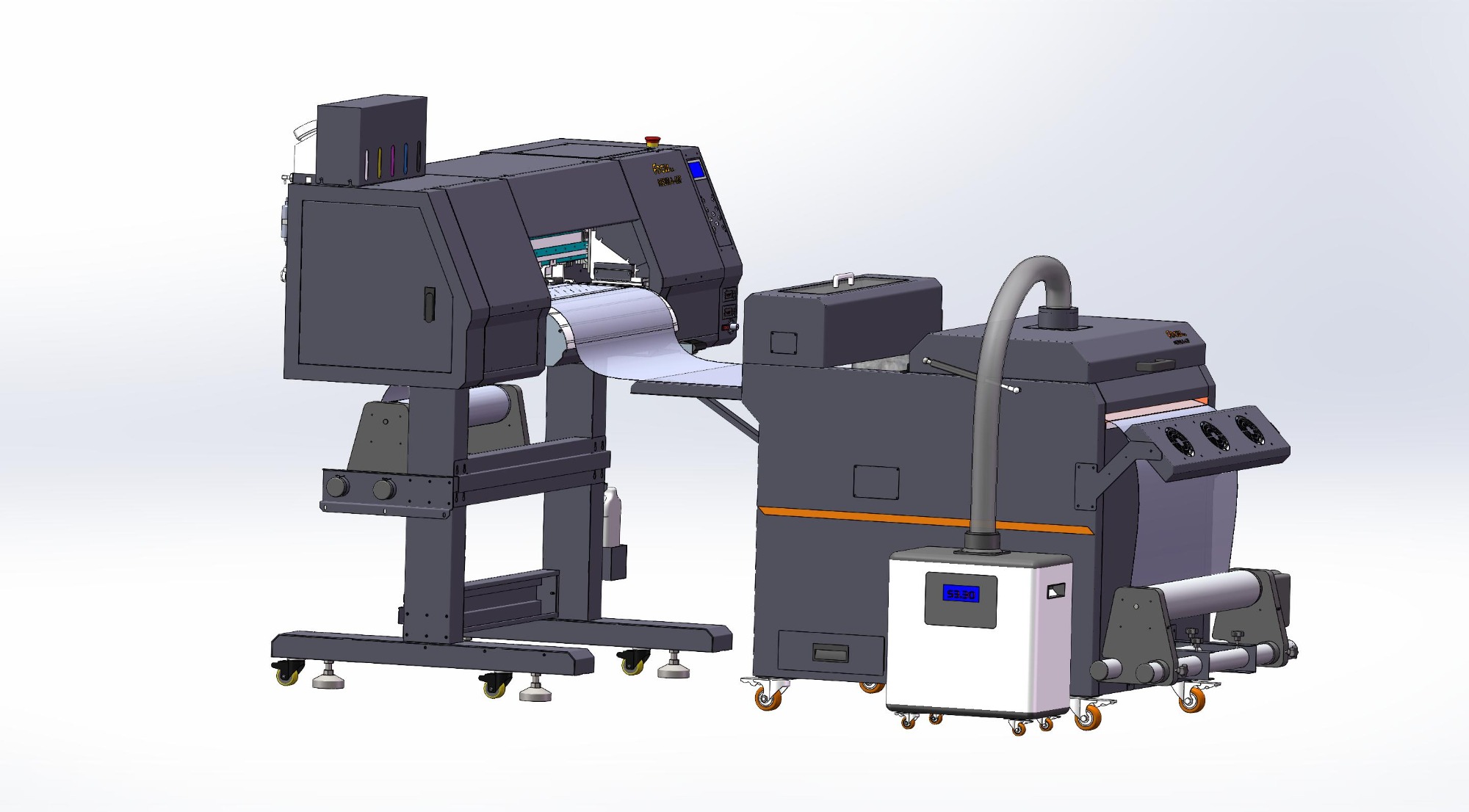

Focus Nebula-62F 60cm DTF Printer

Industrial 2pcs*4720/I3200 heads 60cm DTF Printer
Up to 43.2hz fire frequency under 5-12.5pl
Droplet for mass production

INQUIRY

Description SPECIFICATIONS PRINTING VIDEOS TUTORIAL VIDEOS

Focus Inc. Nebula-62F Specifications
Printing method		Piezo ink-jet technology
Print head	Standard cofiguration	2/4pcs*4720/I3200 Piezo print head
	Number of nozzles	6400 staggered, 400 x 16 rows (400 x 8 rows per each head)
	Jetting frequency	21.6~43.2kHz
	Drop volume	5.0-12.5pl (Variable data single drop & multi drop)　2~4 Grayscale
Print resolution (dots per inch)		7201200dpi; 7201800dpi,720*2400dpi; Uni-direction/Bi-dirction
Print Head mainten technology		Auto keep wet cap station system & Clean flashing during printing and idle
Media type	Roll feed media	Film, paper, leather etc with thickness less than 3mm
Media	Maximum printing width	600mm Width X, Roll feed Y
Film type	DTF film	Professional Release liner DTF film
Transfer media	Garment transfer	Cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc.
Film Feeding	Automatic Release	Automatic tenssion release roller
Film Take up	Automatic Take up	Automatic detect electronic take up Roller
Film vacuum system	Automatic adsorption	Automatic adsorption aluminum vacuum table
Film size	Roll type	600mm*100meter/Roll
Ink	Type	Aqueous DTF pigment ink
	Color	KCMY+W
	Ink tank capacity	1000ml per each color
Ink process unit	White ink Stirring	Automatic white ink stirring system
Ink process unit	White ink circulation	Automatic white ink circulation system
Powder type	Hot melt powder	Grossus, Medium, Fines
Powder dusting	Automatic detect	Automatic detect & Speed adjustable
Powder melt baking	Hot melt	Far infrared rays baking @ Speed adjustable

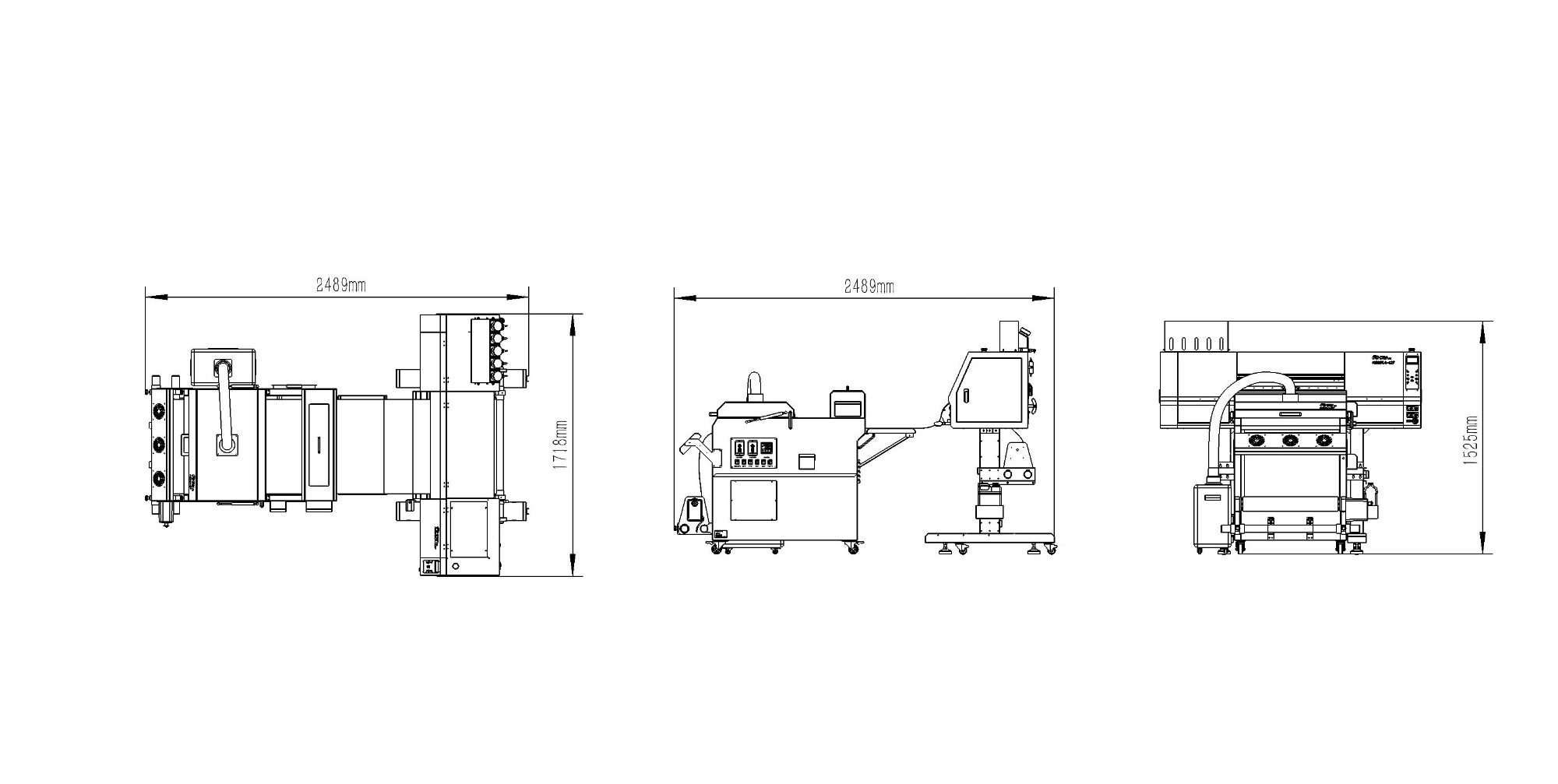

Dimensions	Machine size	Printer: 71.6(W) × 28.4(D) × 59.8(H) in. (1820 × 720 × 1520mm) Powder process system: 51.2(W) × 35.8(D) × 41.3(H) in. (1300 × 910 × 1050mm)
Dimensions	Packing size	Printer packing: 38.2(W) × 24.0(D) ×25.2(H) in. (1920 × 820 × 700mm) Powder process system packing: 54.3(W) × 37.4(D) × 48.8(H) in. (1380 × 950 × 1240mm)
Weight	Net weight	451 lb (205 kg) for All
Weight	Gross weight	715 lb (325 kg) for All
Environment	Temperature	59 to 86 °F (15 to 30 °C)
Environment	Humidity	40 to 80 %
Working Power		Printer 300W, Powder process system 1300W
Included items		Enthernet cable, cleaning kit, USB Flash of software etc.
Connectivity		Enthernet cable
Power requirements		10A Single-phase 220 V, 50HZ
Acoustic noise level		75 dB (A) or less

Software System Requirements
Print control	System	Windows® 7/10 (64 bit) Recommend
(Bundled)	CPU	Intel® Core™ i5, 2.5 GHz or more
	RAM	8 GB or more
	Video card and monitor	A resolution of 1,152 × 854 with 16 bit color or higher
	HDD	Install space 1 GB or more
	HDD	Working space 100 GB
