Focus 830A UV label printing machine Specifications-All

Description SPECIFICATION DEMO VIDEO ONLINE TUTORIAL

Why Choose the VESA-830A UV Label Printer?

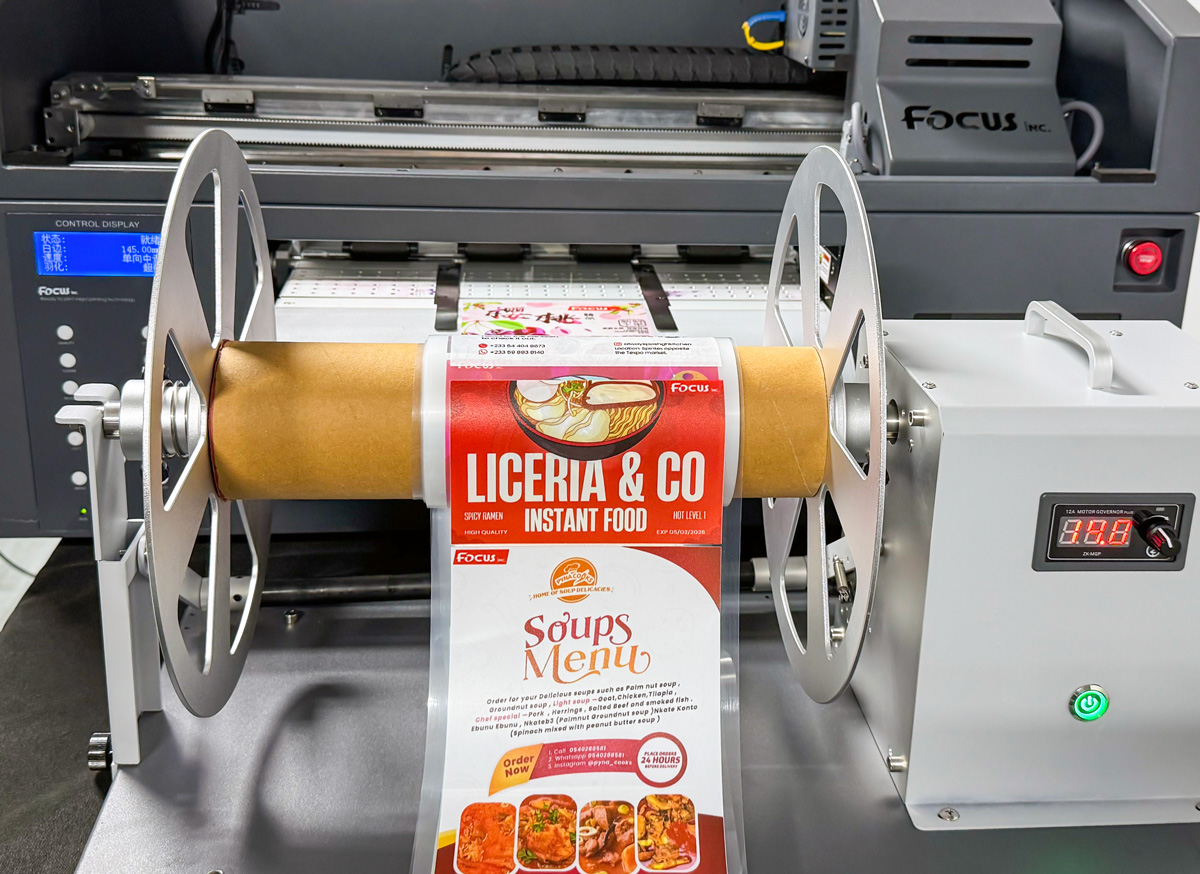

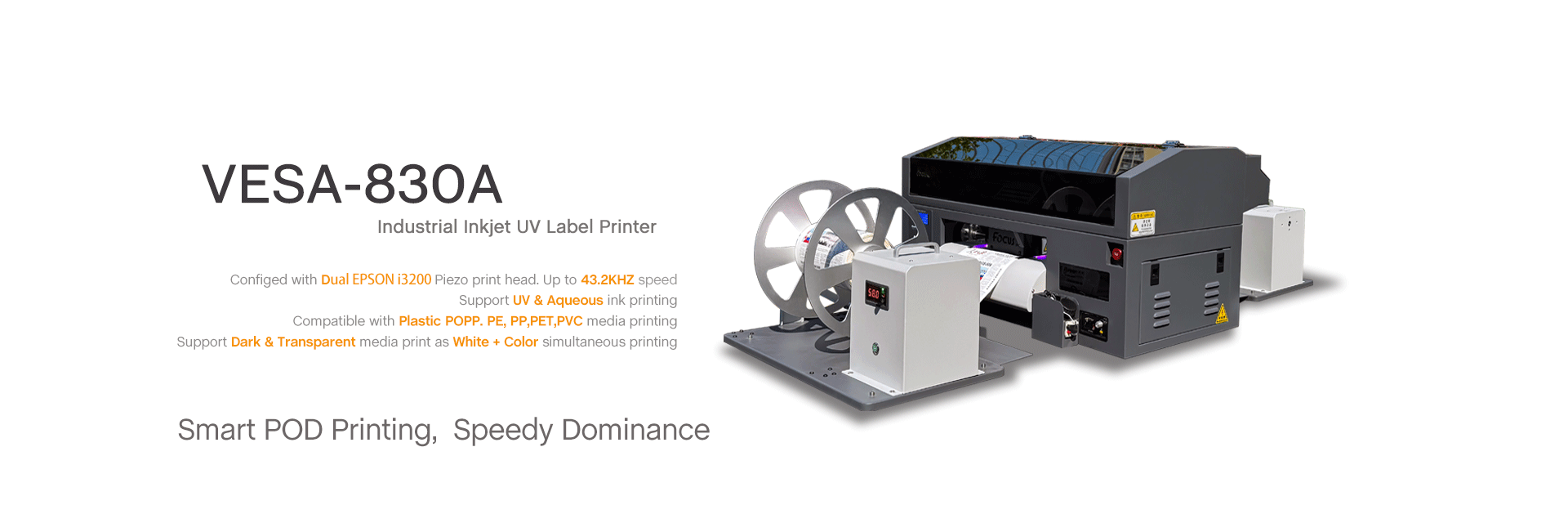

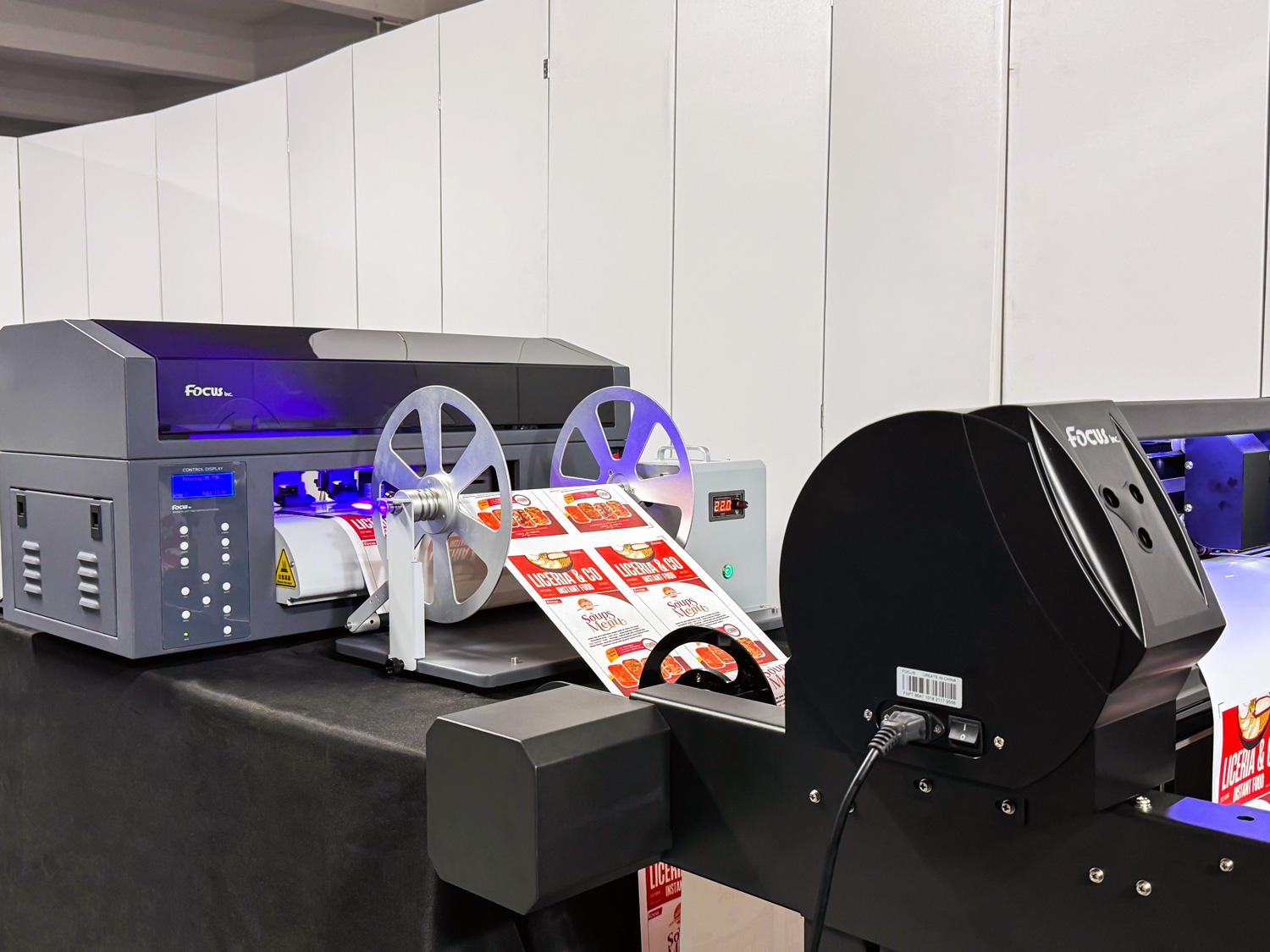

Focus Vesa-830A Desktop Plastic POD UV Label Printer
Designed to address global non-coating plastic label printing market POD demands, this product embodies a "precision, efficiency, eco-friendliness" R&D philosophy. Equipped with intelligent scanning calibration and a high-precision piezo-electric printhead (1200`2400dpi resolution), it delivers seamless printing across diverse materials (No-coating required as PP, BOPP, POPP, PVC PET, paper, metal foil, PET, etc.), resolving traditional pain points like low accuracy and frequent maintenance.

The innovative closed-loop UV curing ink system minimizes waste, while multi-language interfaces and cloud-based data management cater to cross-border e-commerce needs for flexible customization and rapid delivery. Balancing productivity with sustainability, it empowers global users to dominate short-run printing and personalized labeling markets

Demo Video:

Focus Vesa-830A UV Label printer Print Demo video

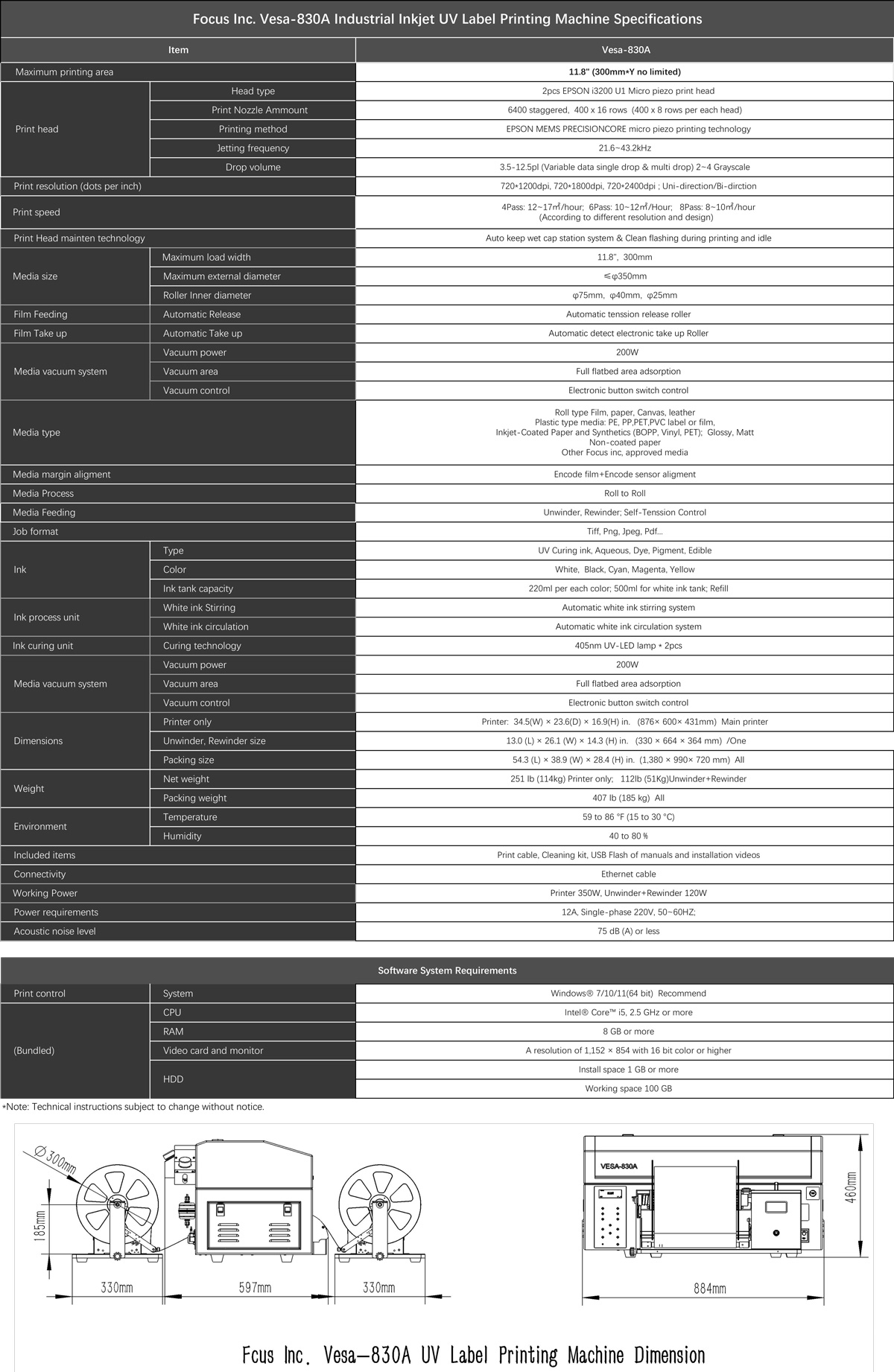

Specification:

Technical Feature:

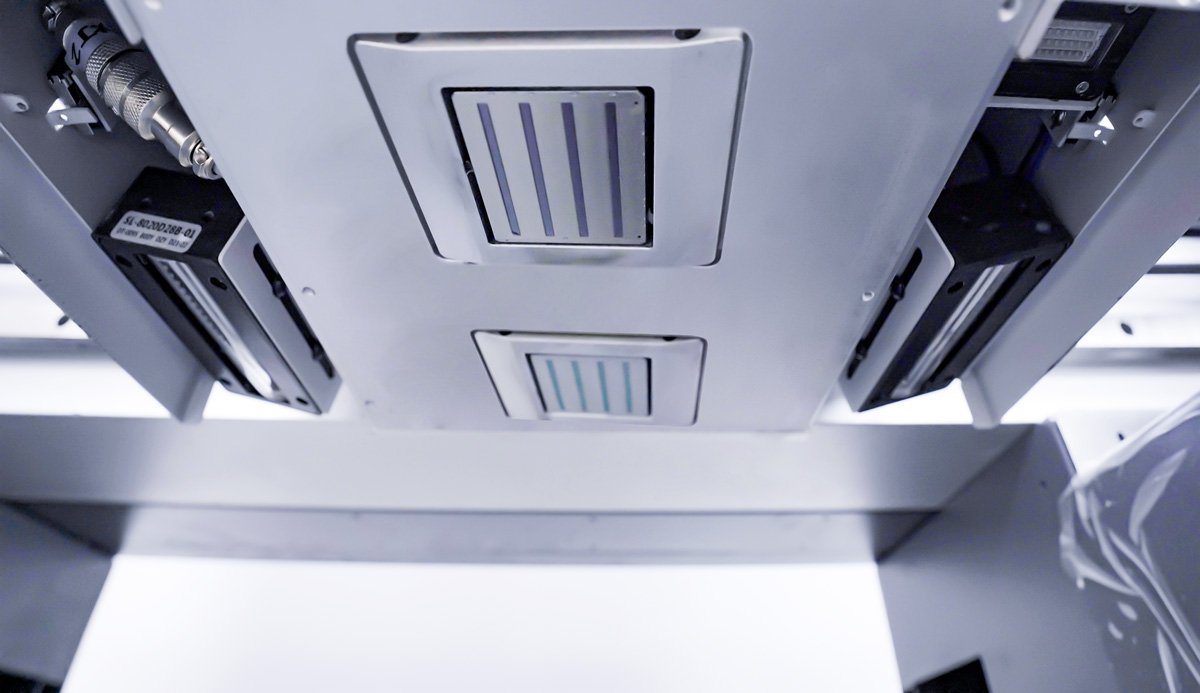

1. Dual Epson i3200 U1 Piezo Print head
Configed with 2 pcs EPSON i3200 industrial printheads with 9600 nozzle achieve 3.8PL ink droplet under 43.2KHZ high-speed grayscale printing. Also enhance the long working life.

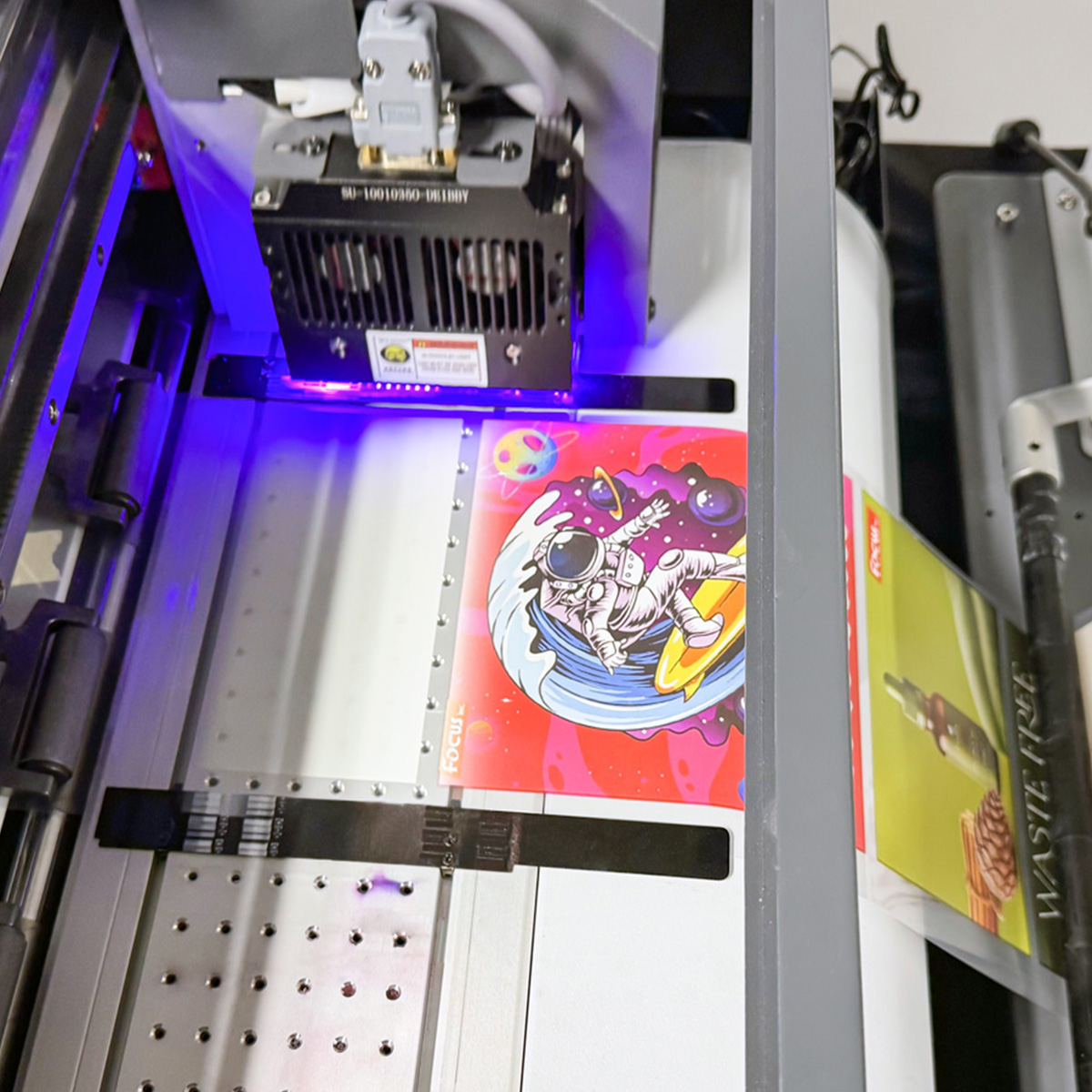

2. LED UV curing technology

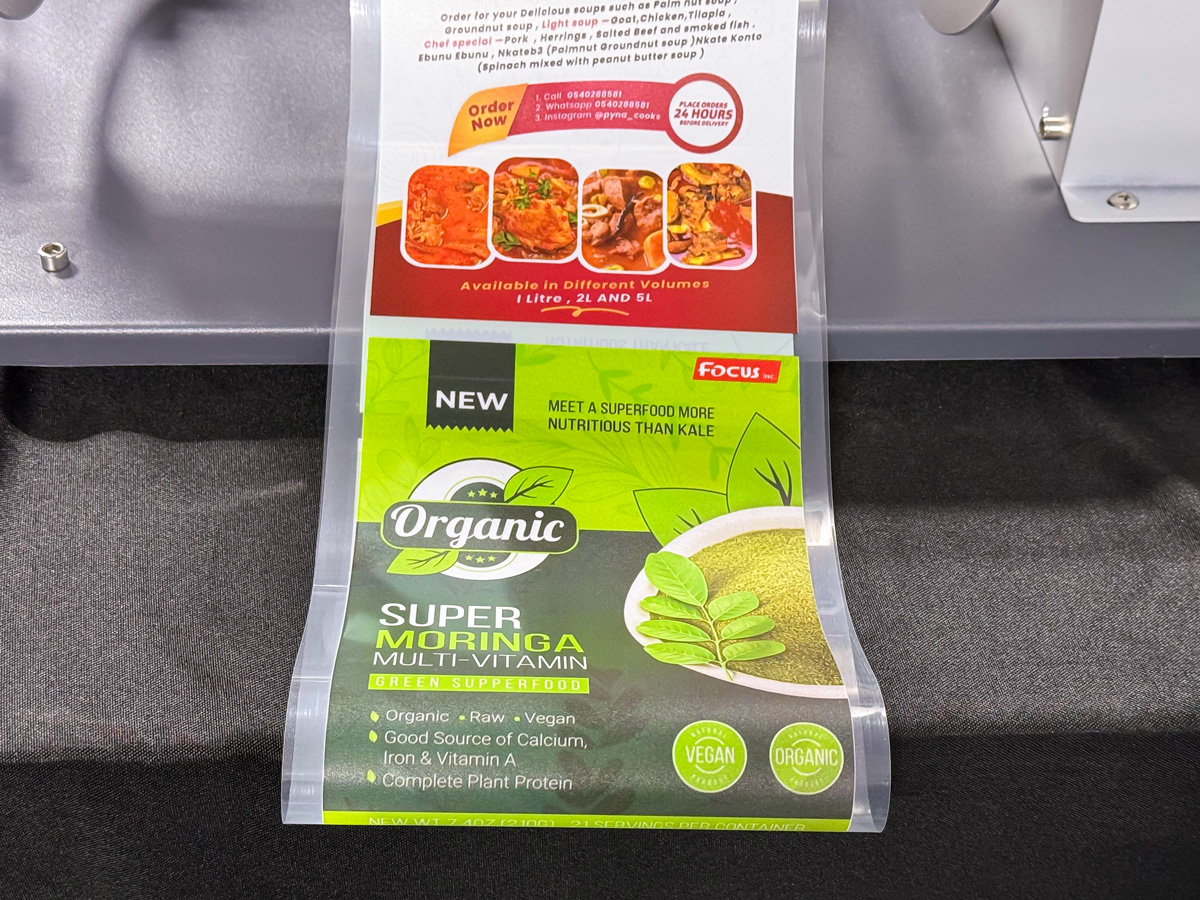

LED UV real-time curing printing technology can achieve high-precision printing on different materials such as uncoated materials, dark materials and plastic materials such as PP, POPP, PE, PET, PVC, etc.

3. Self tension control unwinder and rewinder.
The built-in material tension automatic adjustment function allows the material to be fed smoothly and positioned accurately during printing

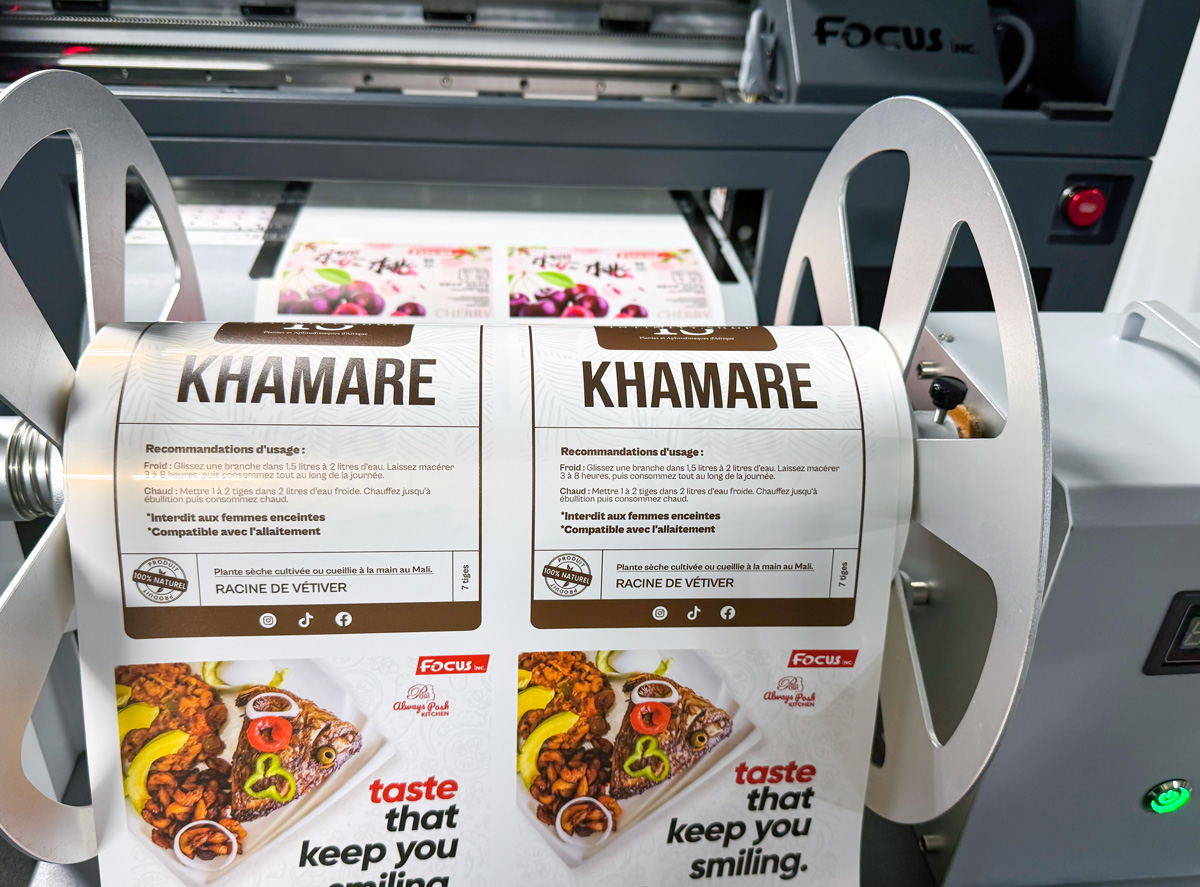

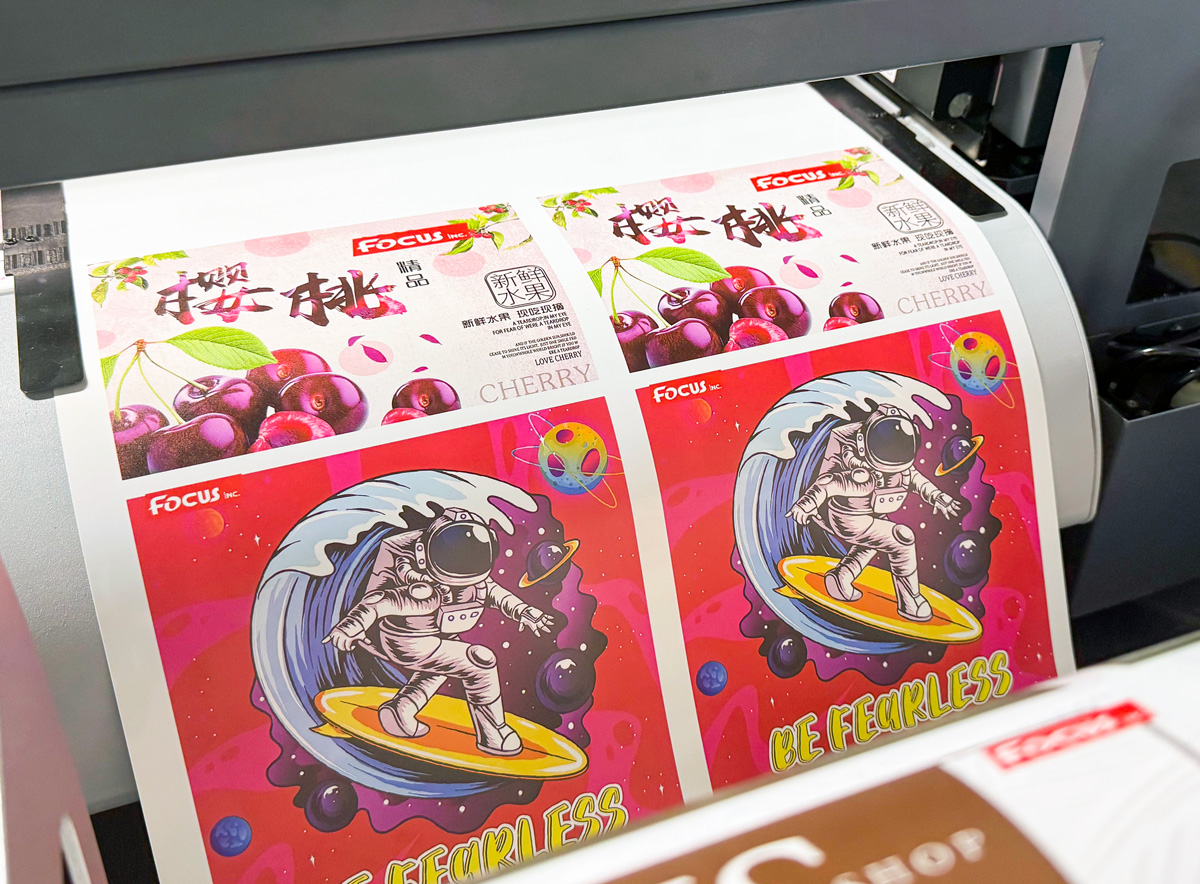

4. White+Color synchronous printing.
White+Color synchronous printing method support to print on various of dark and transparent plastic media. To create more market posibilities for customers.

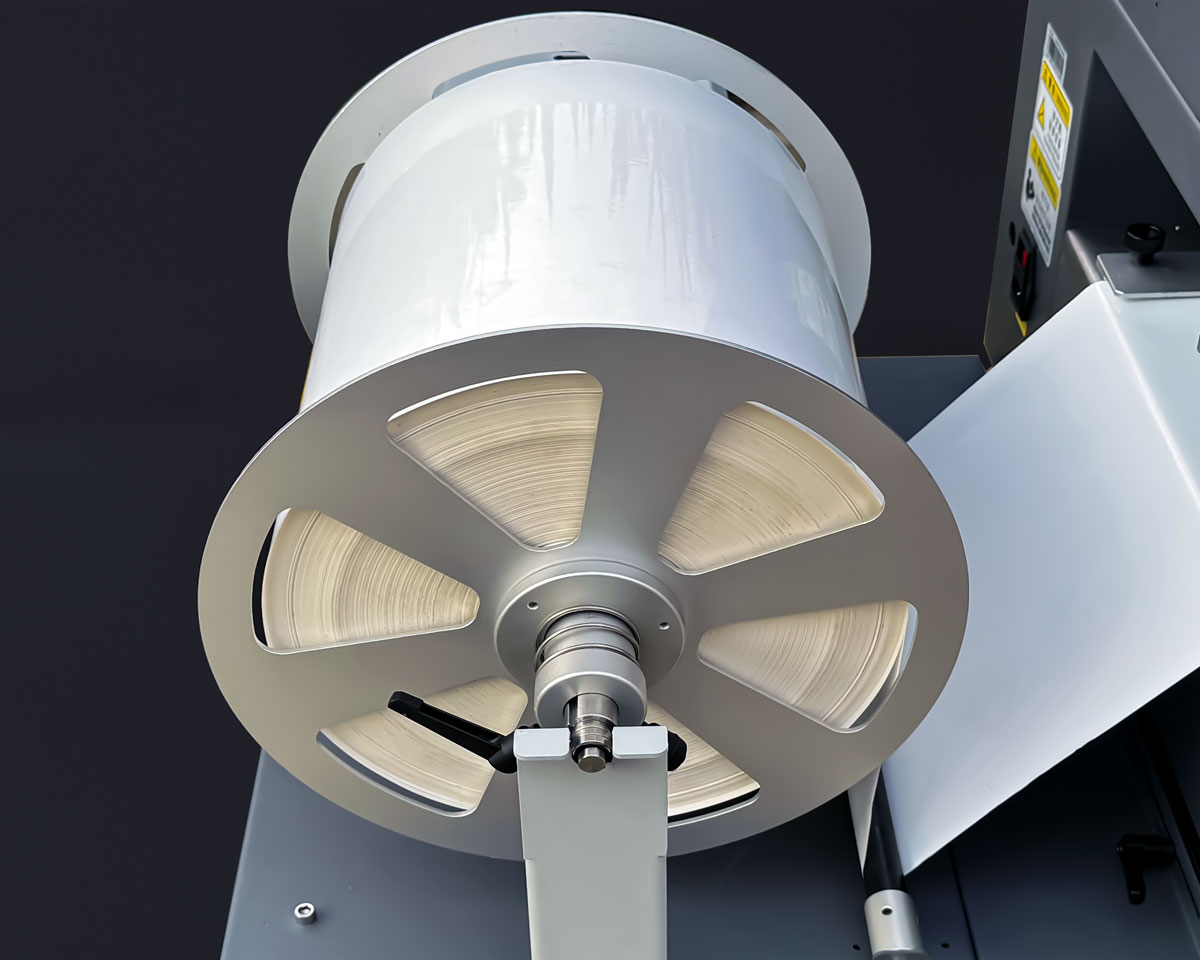

5.Super size media loading & printing
Support max. φ350mm diameter with super 300mm width material loading and printing.

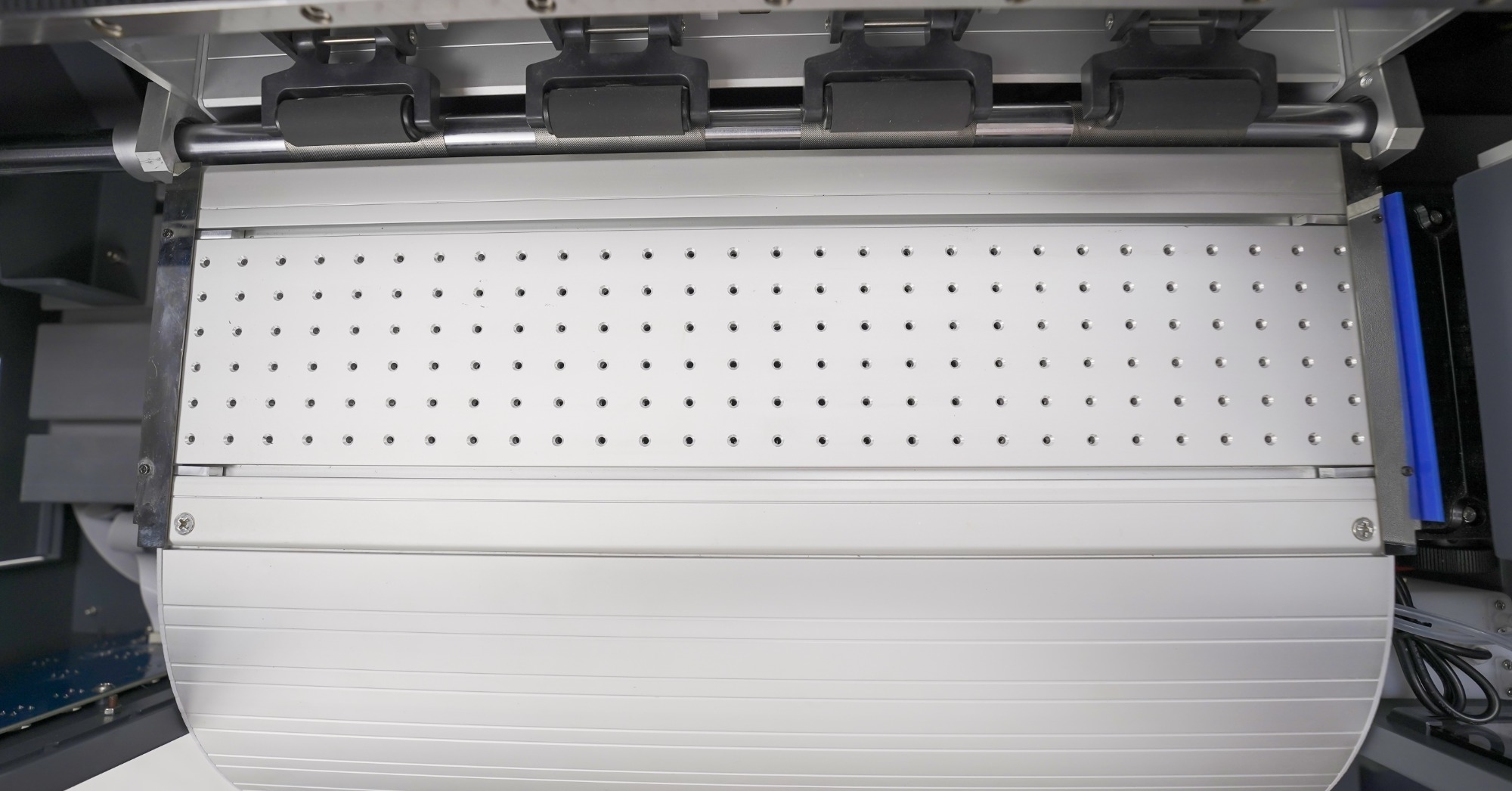

6.Vacuum adsorption print table
The suction adjustable vacuum adsorption function can prevent the printing film bending from scraping the print heads

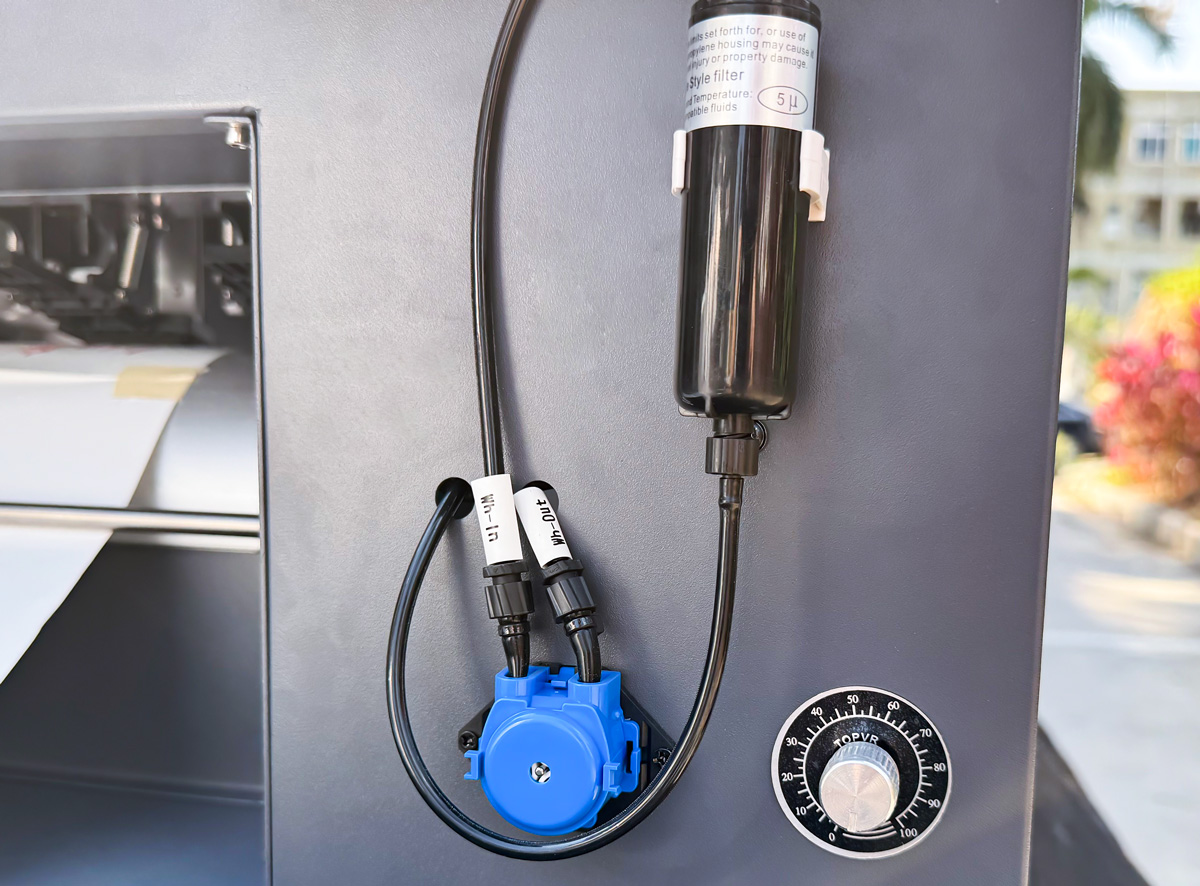

7.Focus inc. WIPCS white ink process system
High quality white ink circulation peristaltic pump made from gear motor to extended the service life significantly

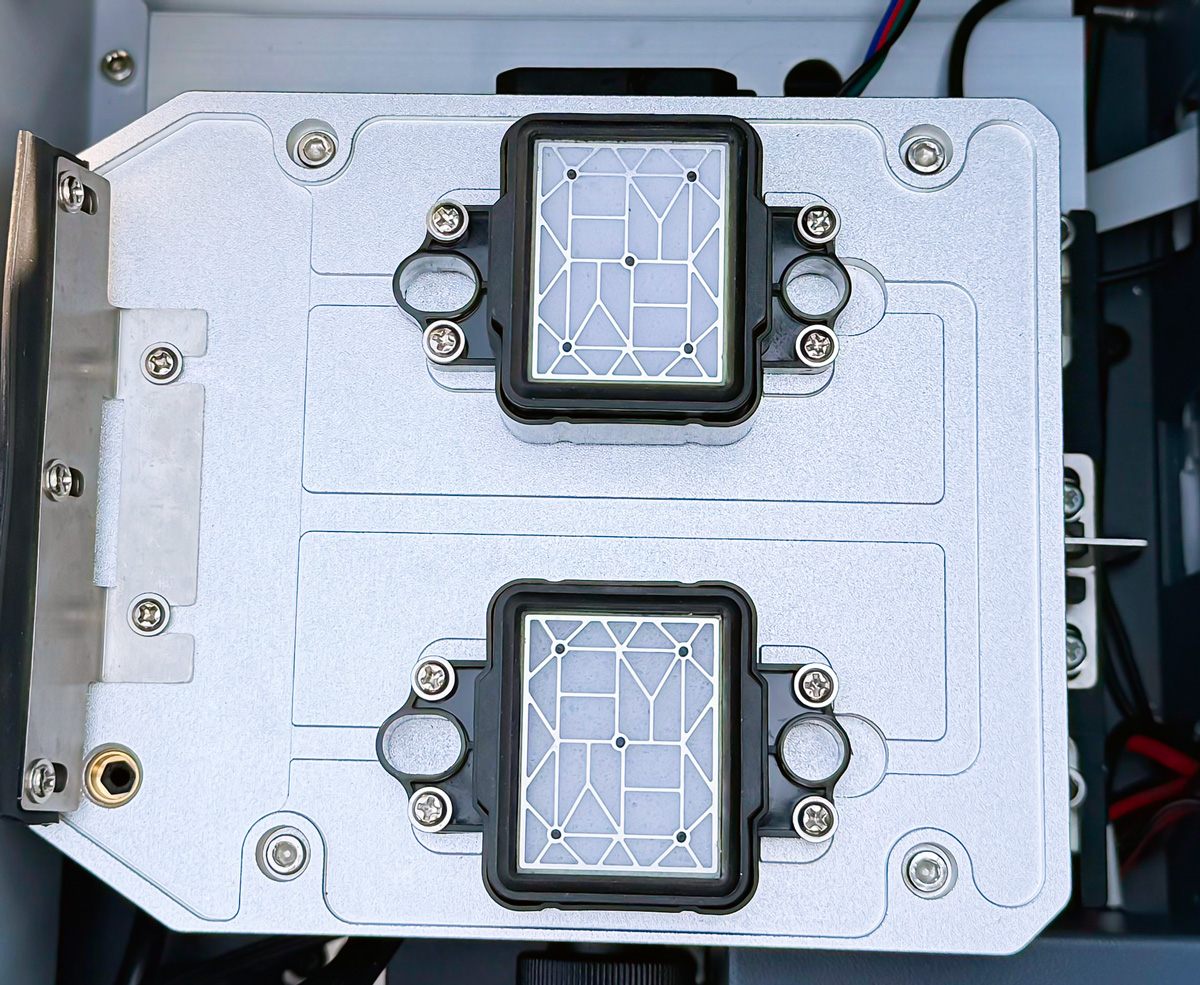

8.Automatic head mainten cap system.
The automatic lifting type cap station design makes the head cleaning and moisturizing more smooth and efficient

9.Easy using control interface
The multi-function printing control panel displays the printing process in real time and makes the printing operation more convenient and faster

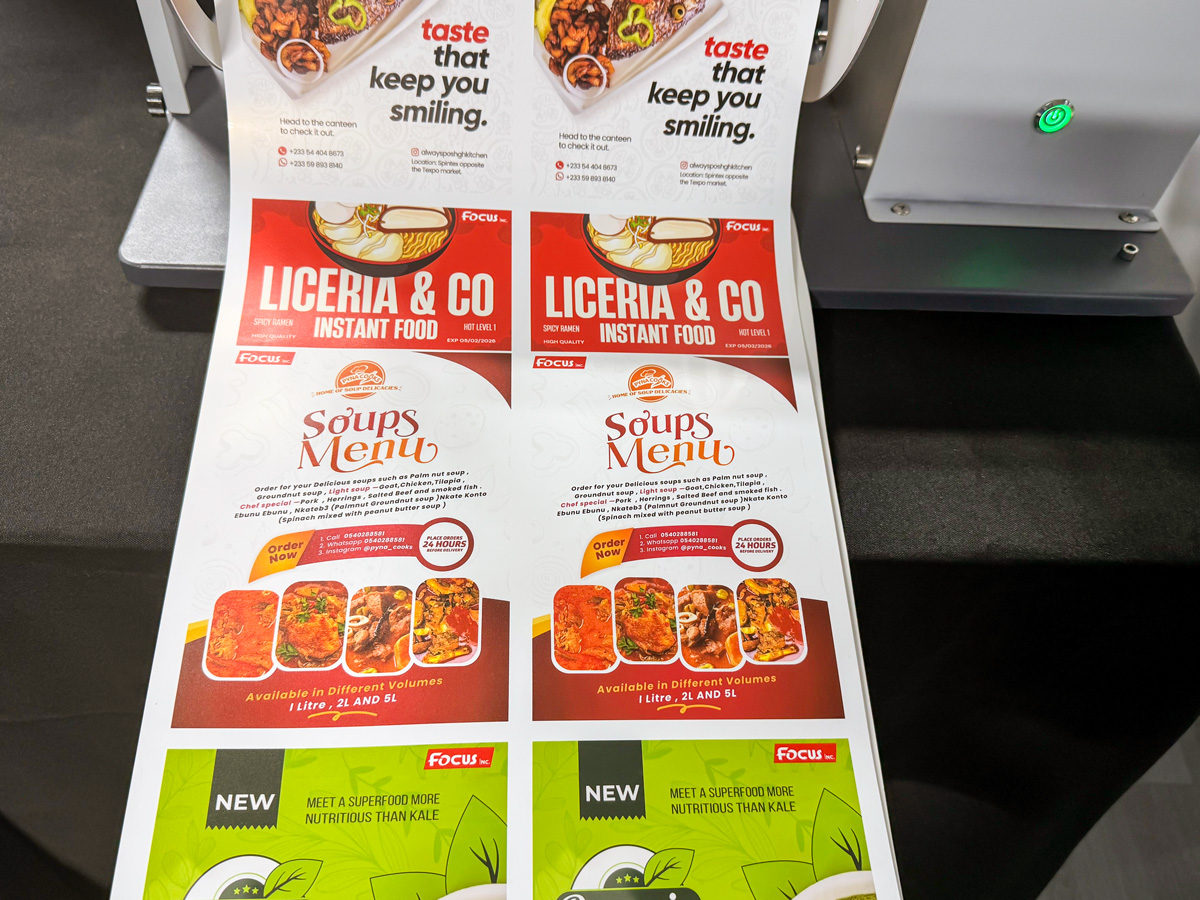

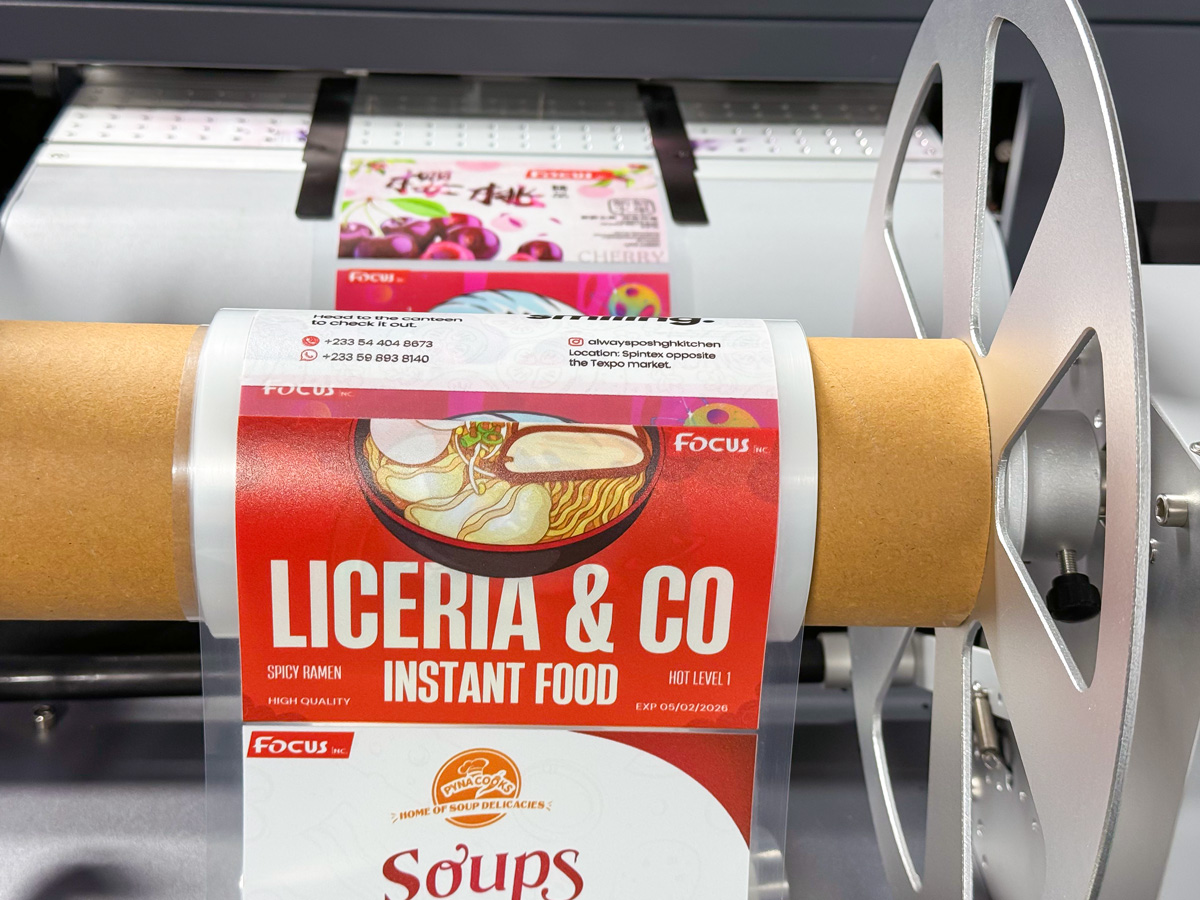

10.Support die cutting+waste remvoal+take-up
It can realize die-cutting while printing or printing first and then die-cutting, also support printing, die cuting, waste removal and take-up all in one.
