Targeted Industrial High-Throughput Printing Solution
The Acaleph-891s-I single pass printer is engineered for manufacturers and production facilities requiring rapid, high-volume UV printing capabilities on diverse substrates. This system targets businesses in packaging, promotional product, and display manufacturing sectors that demand both speed and fine detail. As a single pass uv printer, it supports media widths from 33 to 470 mm with an extra-wide guide, accommodating a range of material dimensions. Its design suits end users prioritizing operational efficiency and consistent output quality, backed by a reputable single pass printer manufacturer with global support and warranty options. Advanced Printing Technology and Precision Controls
Equipped with multiple print head options including EPSON I3200 and Ricoh G5, the Acaleph-891s-I functions as a single pass inkjet printer delivering print speeds up to 40+ m/min. It incorporates a 2500 PIR high-precision Y-axis wheel and laser thickness sensors to optimize print accuracy and media handling. The use of Teflon and stainless steel pressure bars protects the print heads from wear, extending machine longevity. The vacuum platform ensures stable substrate hold, complemented by automated ink refilling and depletion alerts that minimize downtime. This uv single pass printer also eliminates the need for RIP software by providing touchscreen controls integrated with a modular nozzle mounting system. Versatile Application Across Manufacturing Sectors
Designed for industrial and commercial environments, the Acaleph-891s-I single pass printer delivers precise and reliable ultraviolet printing on PET films, cartons, plastics, metals, and glass. This solution supports short-run packaging, promotional signs, personalized accessories, and display panel production. Its ability to print directly on varied substrates enhances workflows in brand packaging, promotional product manufacturing, and retail display. By facilitating rapid turnaround times without compromising quality, it improves operational throughput, making it a strategic asset for production lines requiring UV printing scalability.
Product Advantages Structural and Modular Design Benefits
This uv single pass printer features a robust electrical control system combined with a 42 mm Ultra-Thick Vacuum Partitioned Adsorption Platform for consistent media adhesion. Its modular design accommodates interchangeable print heads such as SEIKO 1536 and CF series, providing high scalability. The incorporation of Teflon and stainless steel pressure bars protects sensitive components from mechanical stress and warping. Furthermore, its laser sensor automatically adjusts to material thickness variations, ensuring system adaptability across diverse substrates. These design elements result from engineering focused on precision, durability, and integration flexibility provided by the single pass printer manufacturer. Enhanced Operational Performance and Ease of Use
Performance-wise, this single pass inkjet printer achieves speeds over 40 meters per minute with high precision, supported by a 2500 PIR Y-axis positioning system. The no-RIP software touchscreen interface streamlines operation, reducing setup time and operator error. Automated ink management, including refilling and depletion alerts, minimizes downtime and supports continuous production runs. The integrated nozzle mounting base facilitates rapid print head maintenance. Together, these features reduce labor costs and boost production efficiency while maintaining print fidelity, delivering tangible ROI for industrial printing environments utilizing a single pass printer supplier with global service coverage.
Why Choose the Acaleph-891s-i UV Printer?
Extensive Media Compatibility: Prints on phone covers, tumblers, golf balls, metal, glass, ceramic, plastic bags, acrylic, non-woven bags, plastic bags, corrugated paper, and pizza boxes...
Versatile Compatibility: Print on materials ranging from 33mm to 470mm, fully compatible with EPSON I3200, SEIKO 1536, RICOH G5, CF3 CF6 and more.
High-Precision Printing: Equipped with a 2500 PIR high-precision meter wheel, the printer ensures accurate Y-axis movement and printing.
Advanced Handling: Laser sensors auto-detect material thickness, while Teflon and stainless steel bars protect the printhead and prevent warping.
Easy Operation: Touchscreen control, no RIP software required.
Worry-Free: 13-Month Warranty. Inquiry Today to Unlock an Extra Free Month of Warranty.
Use Scenarios Rapid Packaging and Promotional Print Production Environment
In packaging manufacturing facilities, where customization and prompt turnaround are critical, the Acaleph-891s-I single pass uv printer excels in printing on PET film, cartons, and bags. Its fast, precise output supports limited-edition packaging and promotional branding on substrates that vary in thickness and texture. The vacuum adsorption platform and laser thickness detection ensure substrate stability and consistent print quality. Integration into automated packaging lines is facilitated by its wide-format compatibility and scalable print head configurations, enabling manufacturers to meet dynamic production schedules and variable order volumes efficiently. Industrial Signage and Display Fabrication Context
Within commercial display production and industrial signage workshops, this uv single pass printer is utilized for printing durable graphics on glass, metal, and acrylic substrates. The system’s high-precision Y-axis movement and multi-head options allow detailed imagery and text reproduction at high speeds suitable for point-of-purchase materials, awards, and in-store panels. Incorporating this device into existing production workflows enhances throughput and reduces reliance on secondary finishing steps. Its robust design and automatic media sensing comply with industrial quality standards, supporting reliable operation in environments where print accuracy and rapid output cycles are essential.
FAQ
What types of materials can I print on with the Acaleph-891s-I?
Our single pass UV printer supports a wide range of substrates including PET film, bags, carton, plastic, glass, and metal. The system handles print widths from 33 to 470 mm, enabling versatile media use for diverse commercial printing applications. Is the Acaleph-891s-I compatible with various print heads?
Yes, the Acaleph-891s-I is designed for compatibility with multiple print heads such as EPSON I3200, I1600, Ricoh G5, CF3, CF6, and SEIKO 1536. This multi-head support enhances printing flexibility and throughput for your production line automation. Do I need additional software like RIP to operate this single pass inkjet printer?
No, our single pass inkjet printer comes with integrated touchscreen control, eliminating the need for RIP software. This simplifies operation and reduces setup time, helping you maintain efficient, uninterrupted printing workflows. What warranty and support options are available for this UV single pass printer?
We provide a 13-month warranty standard on the Acaleph-891s-I, with the option to extend by an additional month. Our global shipping and online guidance services ensure you receive expert support wherever your business operates.
Acaleph-891s-I Digital Single Pass UV Printer Printing Sample

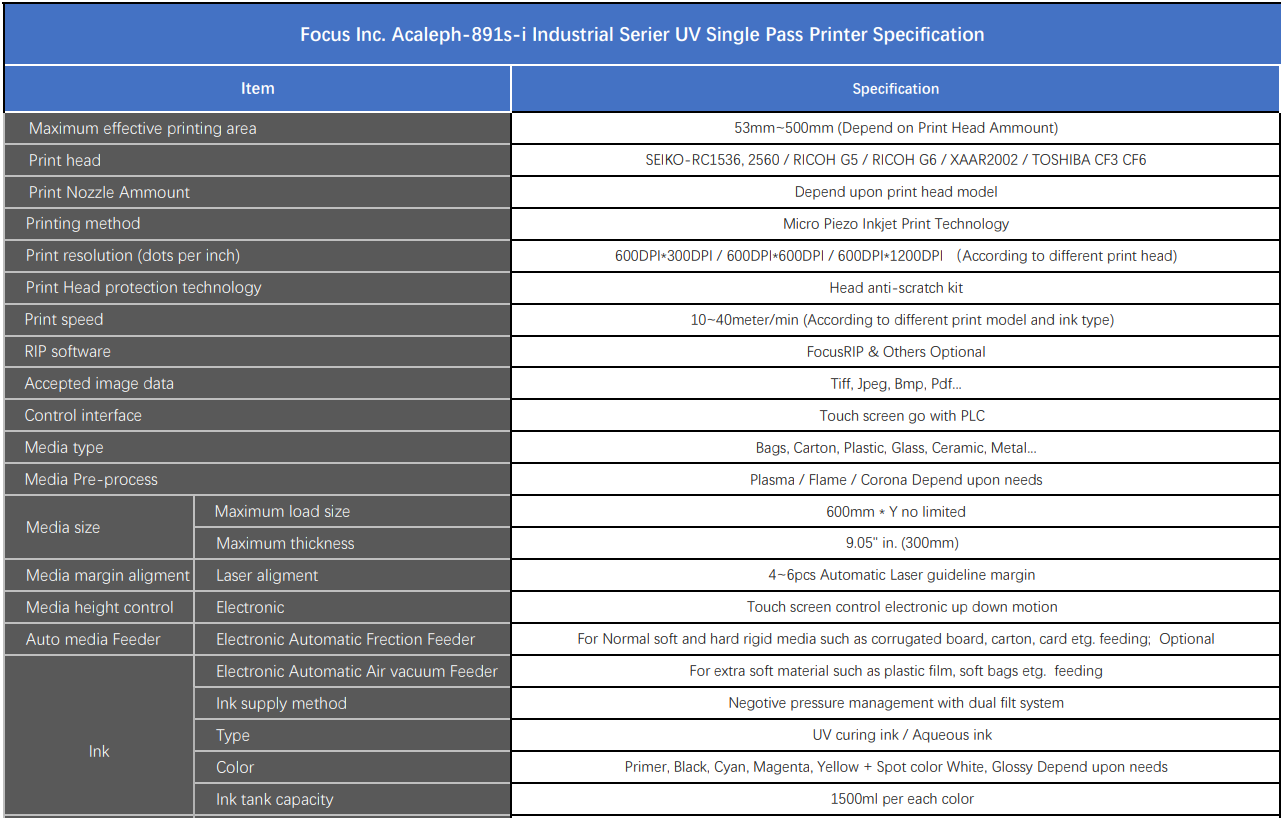

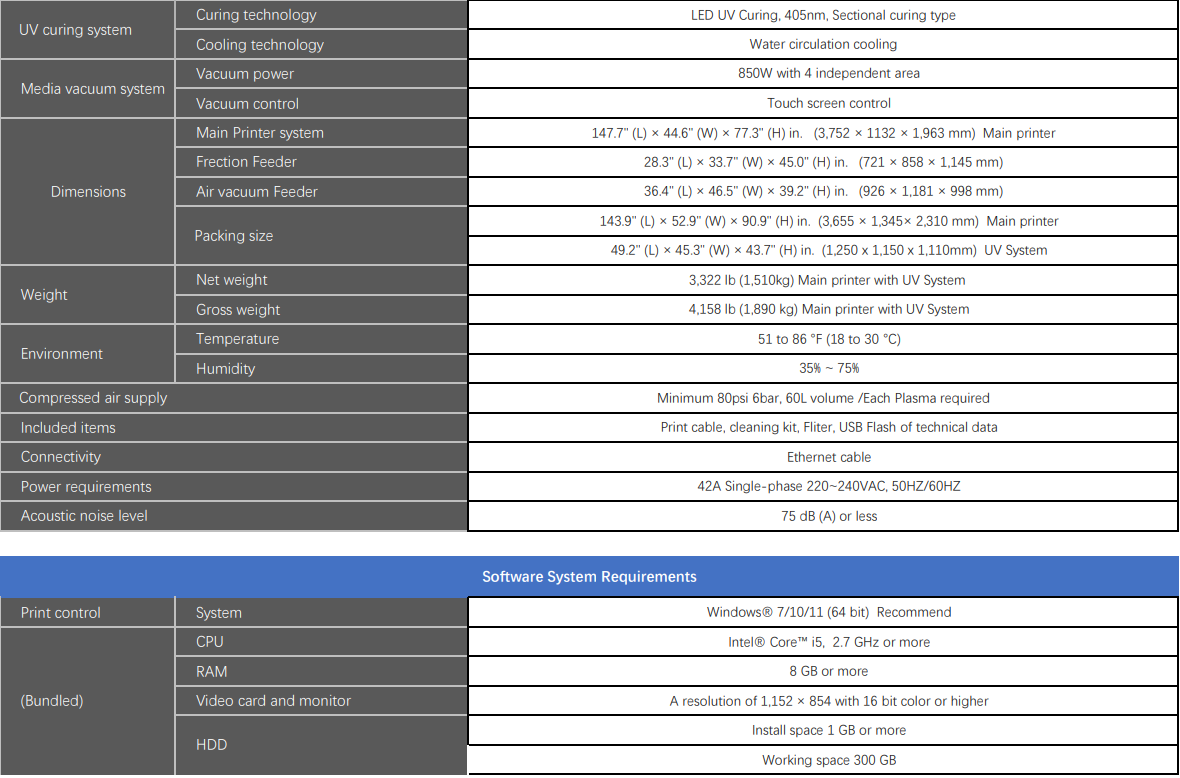

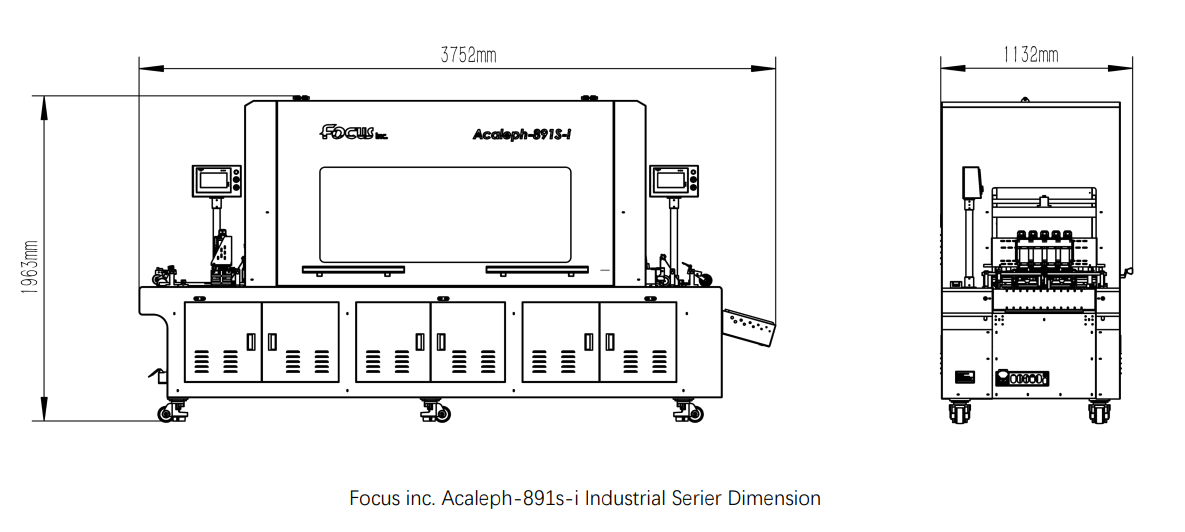

The Technical Details of Acaleph-891s-I One Pass UV Flatbed Printer
Maximize your printing potential with our wide 33~470mm design, compatible with EPSON I3200, I1600, RICOH G5, and more.
Print Different Width Materials Easily: A 60cm extra-wide printing guide enables printing on various material widths effortlessly.
High Precision Y-Axis Printing: Single pass UV printer utilizes a 2500 PIR high-precision meter wheel for accurate Y-axis movement and printing.
Achieve automatic page printing for different material thicknesses with our high-precision, adjustable micrometer.
Laser Sensor for Automatic Material Thickness Detection: UV printer utilizes a laser sensor to automatically detect the thickness of printing materials.
Teflon and Stainless Steel Pressure Bars: Safeguard your printhead with Teflon and stainless steel pressure bars, preventing material warping and protecting against print head damage.
Stable and Secure Electrical Control System: A reliable electrical control system ensures the safe and stable operation of the equipment.
Integrated Array Nozzle Mounting Base: Our streamlined design facilitates rapid installation of the print head array, ensuring swift setup.
42mm Ultra-Thick Vacuum Partitioned Adsorption Platform for Printing Soft Materials
Automatic Ink Refilling and Ink Depletion Alert: Ensuring timely ink supply for seamless printing.
Focus Digital Printer: Hear What Our Clients Say
Meet Focus Team!!
Patent Certificate for Single Pass UV Digital Printer
Global Shipping at The Lowest Rates
If you don't know how to operate the single-pass UV printer?
No worries at all!
Our technical team will provide FREE step-by-step guidance, along with helpful online video tutorials!
▼
Online Tutorial: Using the FocusInc. Single Pass UV Printer
Feel free to inquire Now to get all 15 tutorial videos! :)
