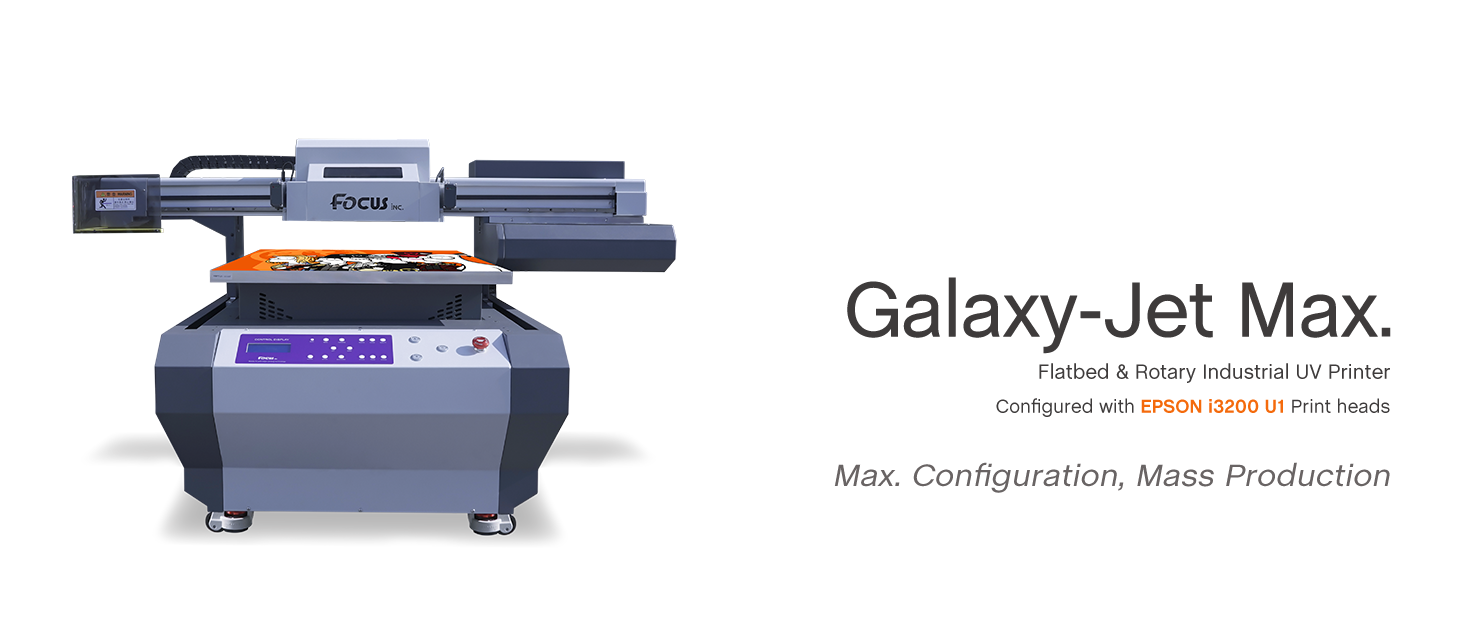

Focus Inc. Galaxy-Jet Max 9060 Flatbed UV Printer with EPS i3200 or Ricoh G5i heads

Print Technology:  Micro Piezo Inkjet
Print Head:  3pcs I3200U1
Head Channel:  12 channels
Head number:  3-heads, White+Color+Varnish
Head protection:  Intelligent anti-scratch
Max. print size:  60*90cm
Print model: Uni/Bi-directional
Description Specification Printing Videos Tutorial videos



Focus Inc. Galaxy-Jet Max.  can install with 3pcs Epson i3200 heads for mass production or 3pcs Ricoh G5i print head for high droplet big curve printing. It allow you to print on flexible, flatbed and some in-rigular products by the max. printing size of 600mm*900mm*180mm(thickness), the white color varnish one pass printing also can create more value for the martet. 3pcs of 600W big led uv lamp can curve the uv ink deeply to avoid the bending issue. laser fabric senor can detect the printing material automatically to protect the print head.


1). Focus Inc. Galaxy-Jet Max.printing demo with 3pcs of Epson i3200 heads:


2). Focus Inc. Galaxy-Jet Max.printing demo with 3pcs of Ricoh G5i heads:


The four-axis lifting ink cap station is one of our major advantages. It has stable lifting, smooth ink extraction, thorough ink scraping, and accurate alignment. Looking at the world, only FOCUS printers currently use four-axis lifting.





Q1.Are you a manufacturer or just a trader?
A1.We are a manufacturer, our own factory located in Shenzhen,and two branch offices in Shanghai and Shenzhen. With the R& D team, we provide create-oriented unique UV and DTG printers with all clients. We are committed to provide high-quality, environmental-friendly UV. and DTG printers, devoted ourselves to technological innovation.


Q2.What materials can this printer print?
A2.It can print on ceramic, metal, glass, wood, acrylic, PVC, plastic etc.


Q3.Can the UV printer print varnish and embossed effects?
A3.Yes, please contact us, would like to show you the beautiful sample.


Q4.How about the warranty?
A4. We provide a 13-month warranty, excluding print heads and ink system.


Q5.Do you provide spare parts and ink too? Where can I get them?
A5. Yes, We can also provide you with the original spare parts.


Q6.This is my first time to print, will you support me?
A6. Sure, we provide the tutorial videos, manuals. And our engineers will help you online.


Q7.What is the difference of 6090 Galaxy-jet MAX and 6090 Galaxy-jet X?
A7. The 6090 Galaxy-jet Max is equipped with 3 Epson i3200 printheads, which greatly improves the printing speed. Optional automatic height measurement function, trolley anti-collision protection function, four-axis ink stack lift and static eliminator are also available.


Q8.What is the difference between UV and DTG?
A8. UV printer is full color printing on glass, ceramic tile, crystal, acrylic, PVC, metal, plastic, stone, leather, rigid sheet, etc.


Q9. Is the printer equipped with an automatic cleaning system?
A9.The printer is equipped with an automatic cleaning and moisturizing system, and the printer will automatically clean and moisturize the printer head when it is turned on and off.


Q10.Can the UV printer print flexible goods and bottles?
A10. Yes, it can.

In order to provide better service to customer, Focus attend the exhibition every year to show Focus machine to the world.


FOCUS INC. GALAXY-JET Max 6090 UV PRINTER
Print Technology:  Micro Piezo Inkjet
Print Head:  3pcs Epson I3200U1
Head Channel:  18 channels
Head number:  3-heads, White+Color+Varnish
UV system:  100-Degree adjustable
Cooling system: Water cooling
Temperature adjust:  Auto on/off. 25-35
UV wavelength:  395-405nm
Head protection:  Intelligent anti-scratch
Print speed:  180s/A2 size(720*720dpi)
Print model:  Unidirection/Bidirction
Print resolution:  720*720dpi-720*3080dpi
Print type: One pass/Single/Copies
White layer:  Bottom/Top/Middle
Rip software:  FocusRIP/RIPRINT
Image type:  Tiff, Jpeg, Png, Pdf
Repeat precision:  0.1mm
Head cleaning:  Auto flushing+Keep wet
Max. print size:  60*90cm
Print media:  Hard/Flexible/Bottle
Media thickness adjust:  Software auto-detection
Max. print thickness:  18cm
Ink type:  UV ink
Ink system:  Refill CISS system
Ink process system: Auto shaking + circulation
Ink level:  Auto detection+Auto alarm
Color model:   8colors
(CMYK+LC+LM+White+Varnish)
Tank volume:  550ml refillable
Color Rendition:  ICC profile+Curve
Position type:  Laser marking
Print table: Vacuum adsorption
Table treatment:  Teflon coating
Print model: 3D. Wave. Rand. Eclosion
Motion config:  Servo motor
Control interface:  Control panel+Software
Drive config:  4 linear rails+Dual Ballscrew
System requires: WINXP/WIN7/WIN10 32/64bit
Working environment:  18-25, 50% Humidity
Working power: 480W
Electric supply:   110V/220V
Interface: USB2.0/3.0/TCPIP
Gross weight/Net weight:  380KG/320KG
Packing size: 155cm*155cm*98cm
Machine size:  140cm*140cm*90cm
Industrial Galaxy-Jet X UV Flatbed Printer Printing Demo









Please follow our Youtube for more video...



Review

SUBASH nair
Jul 18, 2023
Dear Team, I would like to know if the printer can print on a painted surface. What is the typical durability of uv print? Can it print on an uneven surface? Can it support automobile-grade surface coating or nano-coating? Please forward me more details and a price quotation for the printer and optional accessories. After reviewing the basic information and cost, I will share more information if required. BR, SUBASH
Moussa
Jan 29, 2023
Fdp
