Description

Focus Inc. manufactuered superior Hot and cold peel transfers release matt film for use in the process of direct to film (DTF) inkjet digital printing using aqueous pigmented inks. Double side inkjet Coated PET Film are available in sheets and rolls. This double-sided coated film provides better printer roller traction with minimal static allowing for a great printed image without background artifacts, better color rendition...



Advantage:

• Heat stabilized
• ≈0.1mm thicken thickness
• Double-sided inkjet coating
• Little to no shrinkage
• Excellent printing outcome
• High matt quality
• Easy and smooth to peel by hot or cold peel
• Good scratch resistance
• Recommended cure times: 15s under 158°C with 5~7kg pressure
• Treated to reduce the effects of static

Specification:

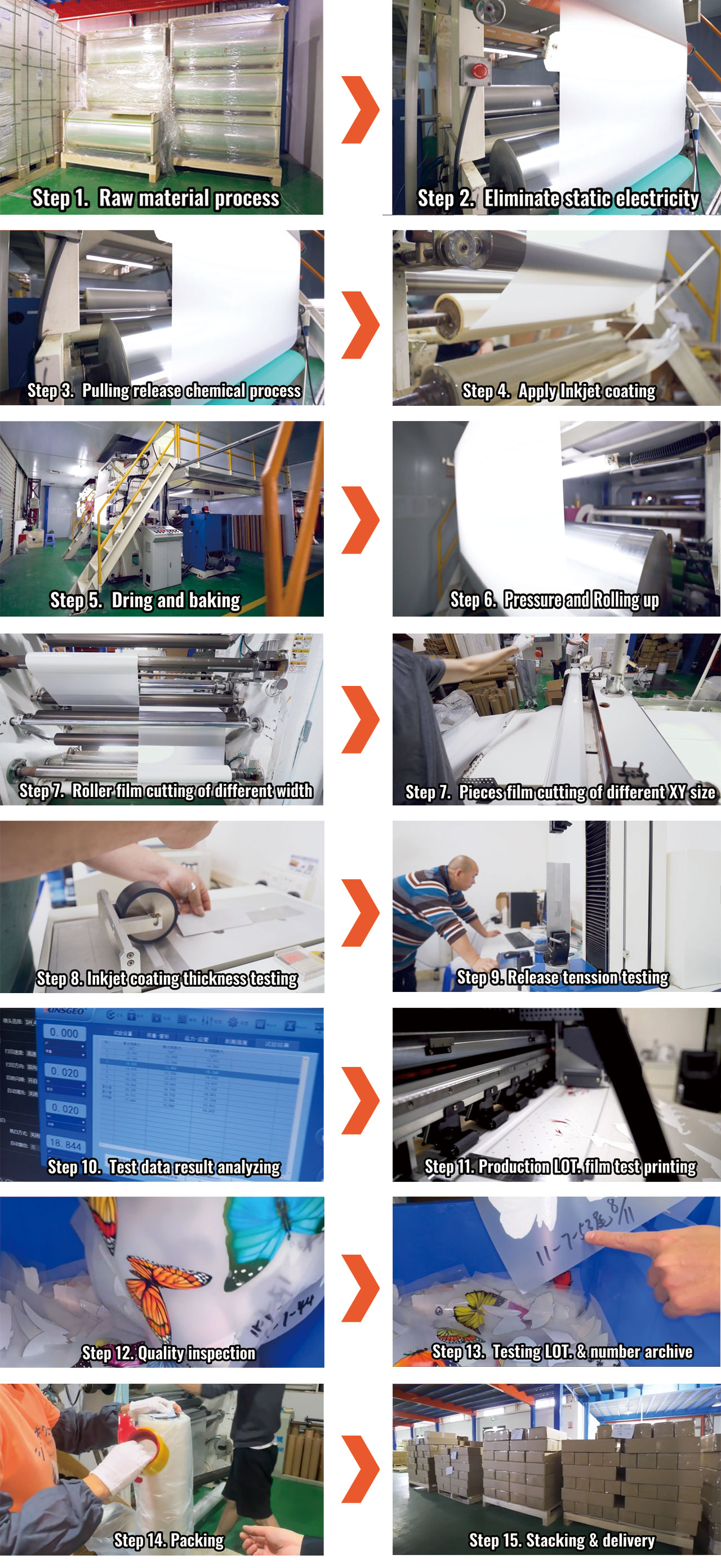

See how did a good DTF Film produced in Focus Inc. manufacturer under 15 steps production processes:

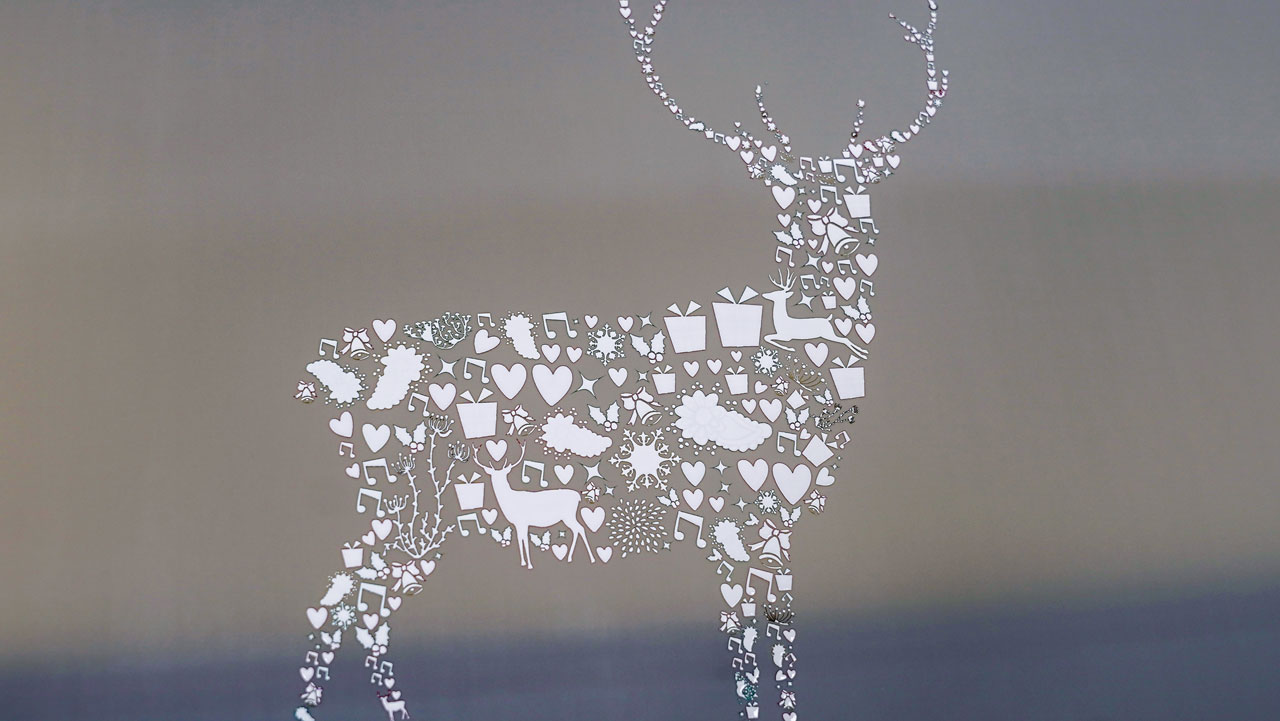

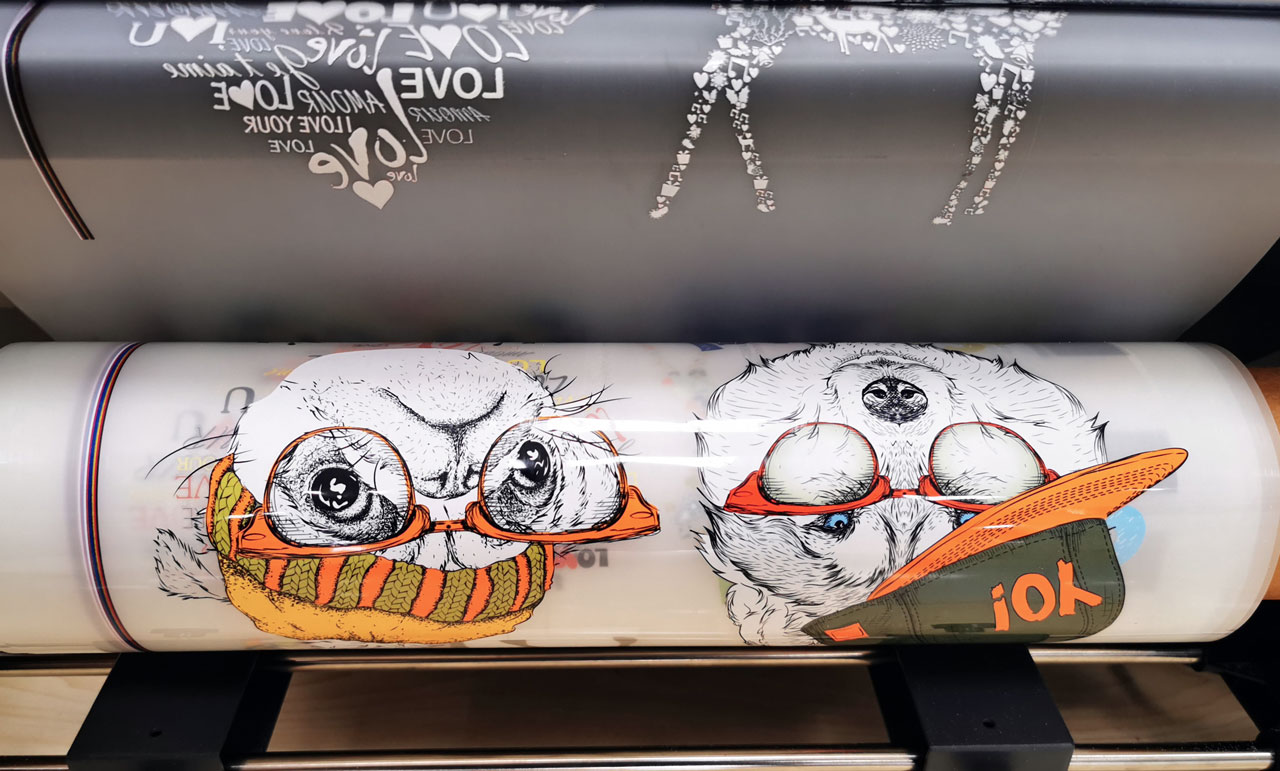

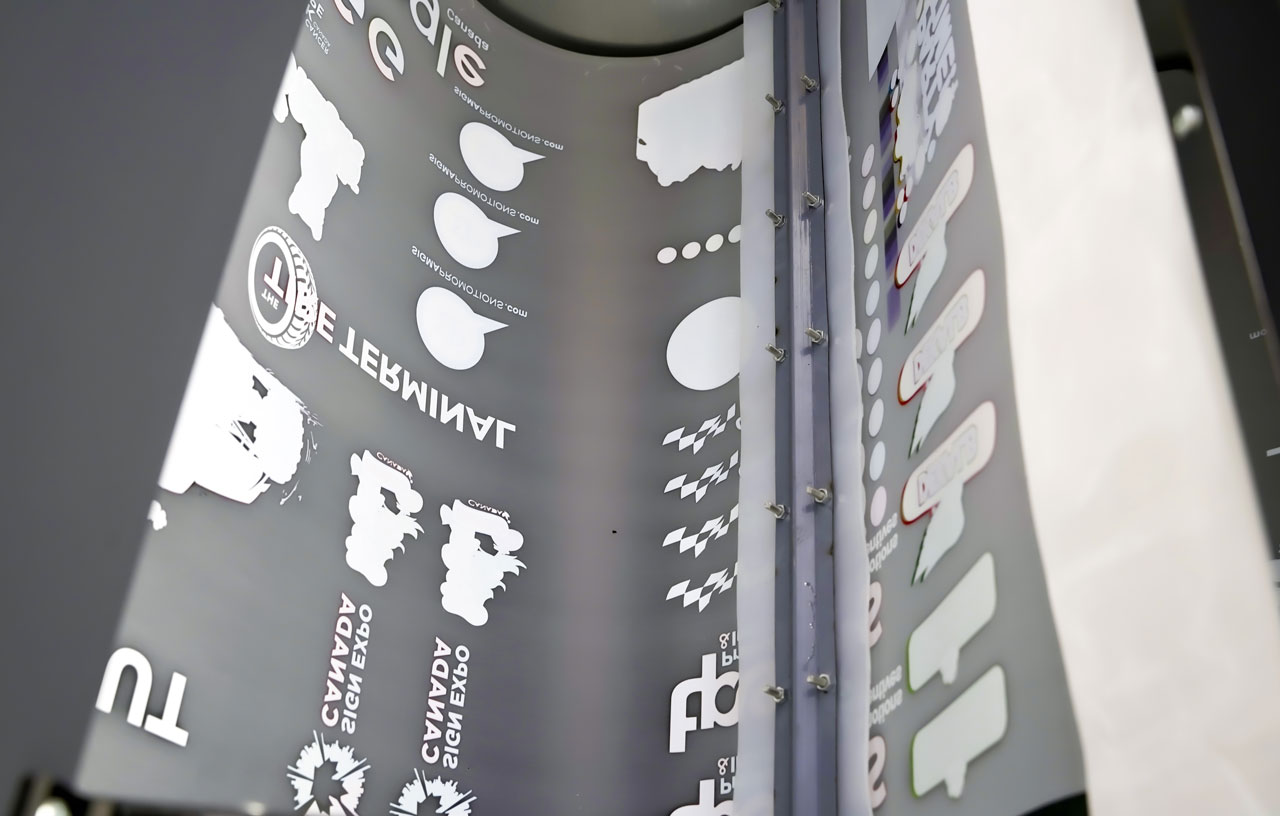

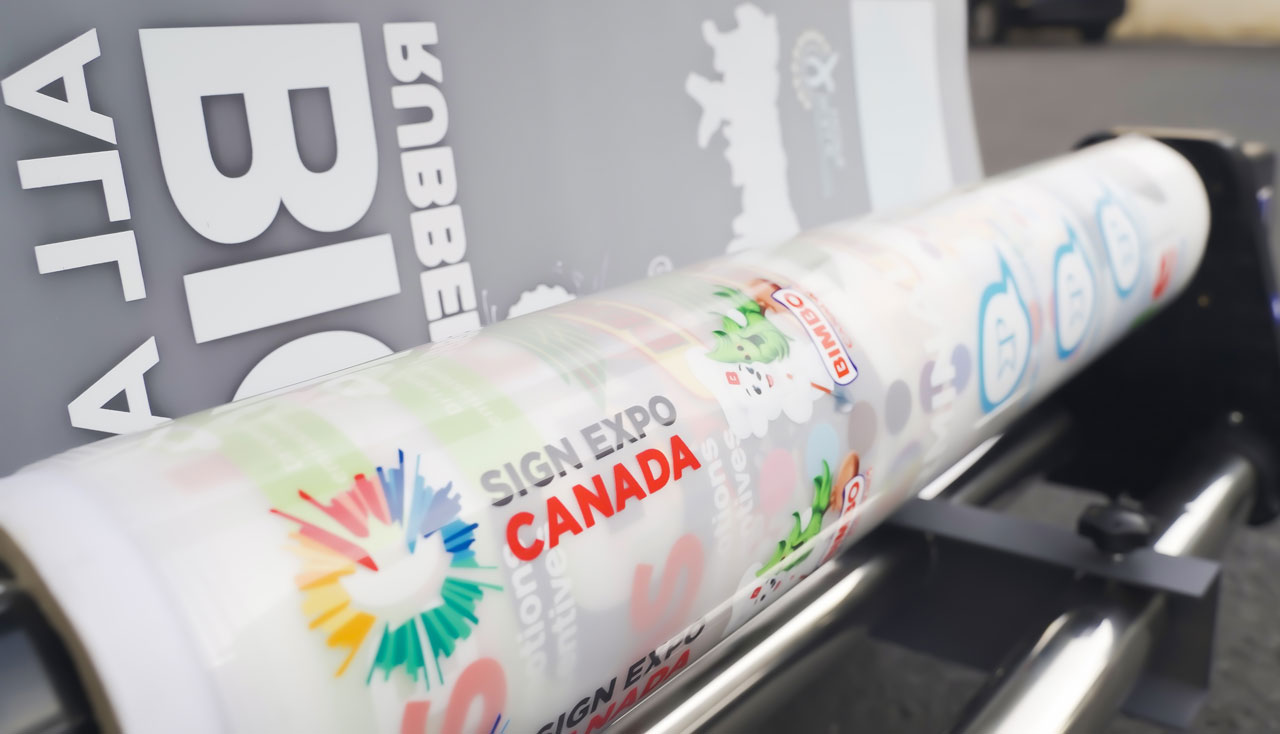

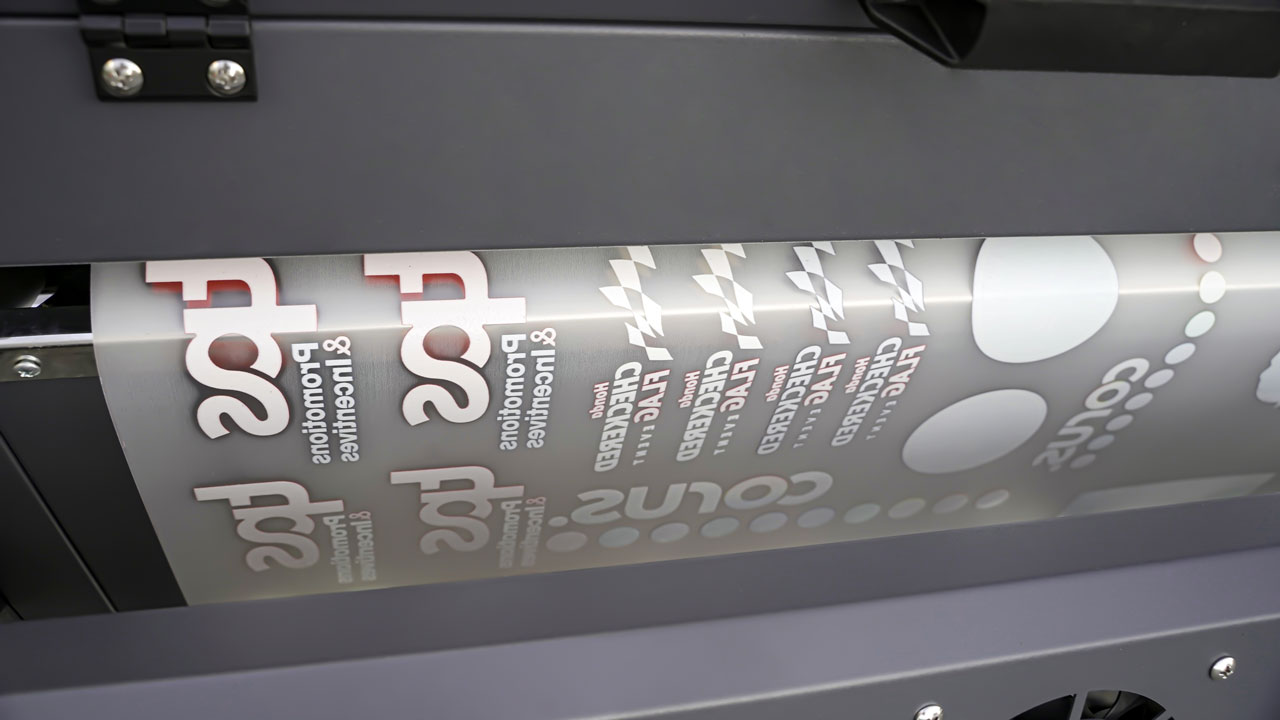

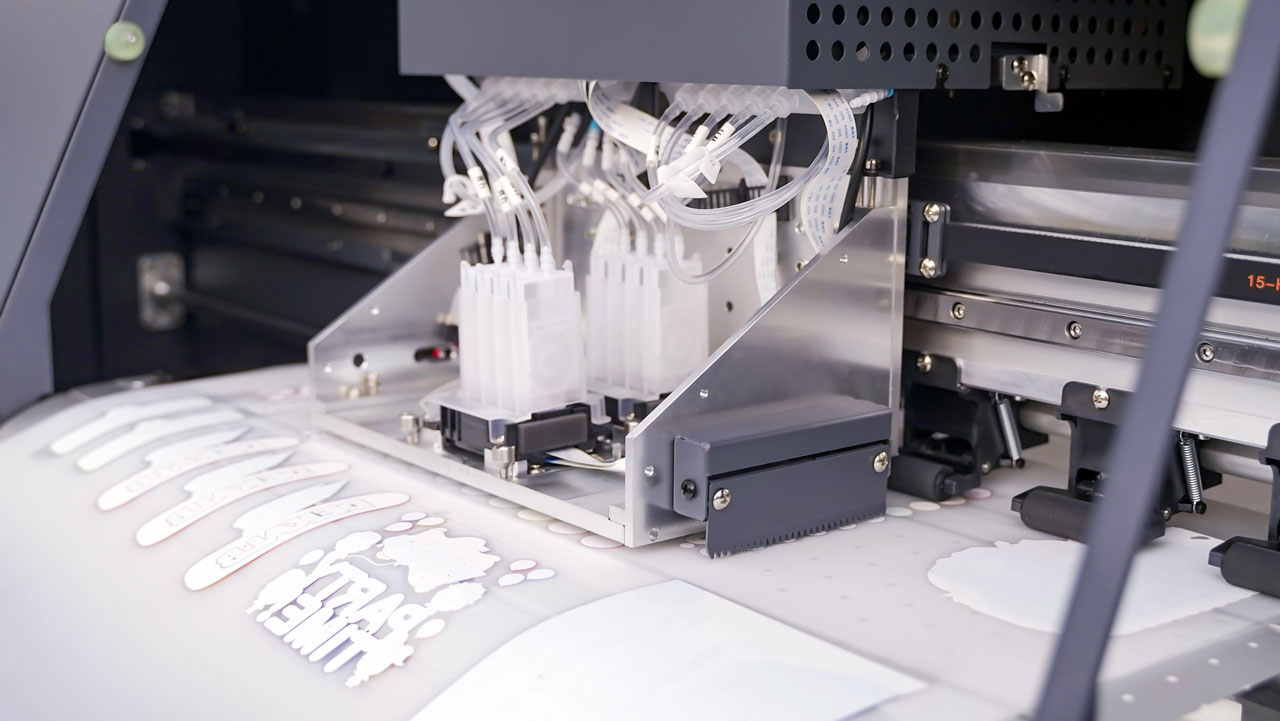

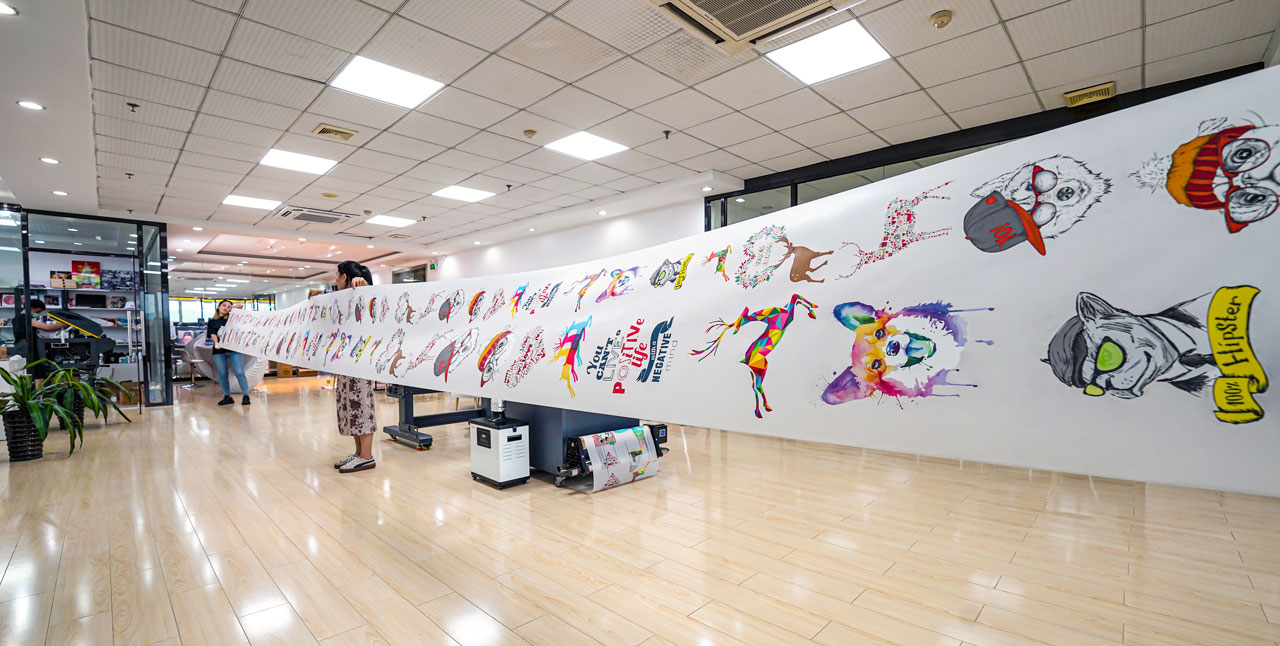

Printing sample by Focus Inc. superior dtf film with Focus Inc. Nebula-62F DTF printer

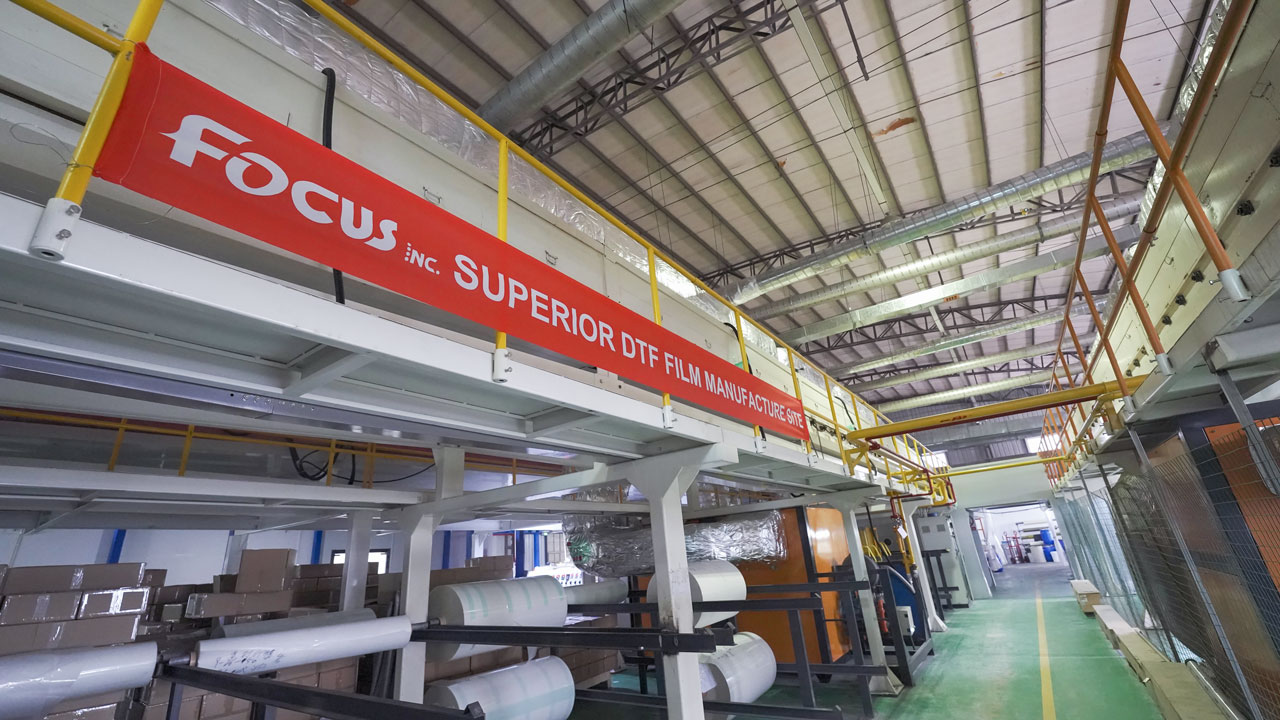

Focus DTF Film Manufacturering production process:

What is DTF Printing?

Direct to Film printing is a method that rivals Direct to Garment printing (DTG) and allows users to print their logos and/or artwork onto a special type of coated PET film. This film is then used to transfer the printed image onto textiles using a lightweight powder adhesive that can be applied manually or by using an automatic powder shaker to distribute the adhesive evenly across the artwork and film, and with this added step, the transfer process is made possible. All American Print Supply has everything you need to get started.

What sets DTF apart from other transfers?

• No cutting and weeding required
• Crisp, defined edges and images from start to finish
• No advanced technical printing knowledge required
• A great option for small orders
• Low cost on waste
• Low investment – high reward
• Works on most fabrics including non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, & more

Printing Application Guide:

Step 1 – Printing on Film

• Using a DTF inkjet printer, insert Focus Inc. superior DTF/FTF transfer film in printer paper tray or on paper roll holder
• For Dark shirts
  • print color image on the film
  • print white image layer on top of the color image
• For Light shirts:
  • print color image on the film
  •

Step 2 – Powder Application

• Apply the Focus Inc. superior DTF/FTF hot-melt powder uniformly on top of the wet print
• White powder may be used for all applications or black powder may be chosen for dark work
• Powder may be sprinkled manually onto the print in a tray and agitated to cover print completely
  • NOTE: an automated commercial shaker may also be used for powder application
• Ensure that the powder is evenly spread over the printed surface of the film
• Carefully remove excess powder

Step 3 – Melting the Powder

• Place the film with the printed image and the applied powder in a Curing Oven and heat for 2-3 minutes at 100-120°C

OR

• Place the film inside a heat press, hovering and not applying pressure. A 4 to 7 mm gap between the film and the heat press top plate is recommended, for 3-5 minutes at 140-150°C. Do not completely close the press.

Step 4 – Pre-pressing

• Pre-press the fabric prior to transfer of the image by the film for 2 to 5 seconds
  • Pre-pressing will flatten the fabric and remove excess humidity contained in the fabric
  • Pre-pressing helps in successful transfer of the image from the film onto the fabric

Step 5 – Transfer

• The film with the image and the melted powder is placed on the pre-pressed fabric in the heat press
• Press/Cure the image to the fabric for 10-20 seconds at 160-180°C

Step 6 – Cold Peel

• Allow the film/image attached to the fabric to cool completely
• Separate the film from the fabric, leaving the desired image on the fabric

Step 7 – Post-pressing

• A post-press process is highly recommended for best results and high-performance parameters such as wash and rub fastness
• Re-press the image on the fabric for 10-20 seconds at 160-180°C
