Focus Atlas-1311 Flatbed UV printer

Printhead: RICOH Gen5 / TO SHIBA CE4 / EPSON I3200
Max. print size: 130*110cm
Max. print thickness: 320MM
High-jet: 10-20MM
Ink process system: Auto shaking + Circulation
Rip software: Print factory/FocusRip

INQUIRY

Description SPECIFICATIONS PRINTING VIDEOS TUTORIAL VIDEOS

Focus large-format ATLAS-1311 UV printer

Think different
Print different

Printing height is as high as 320MM.

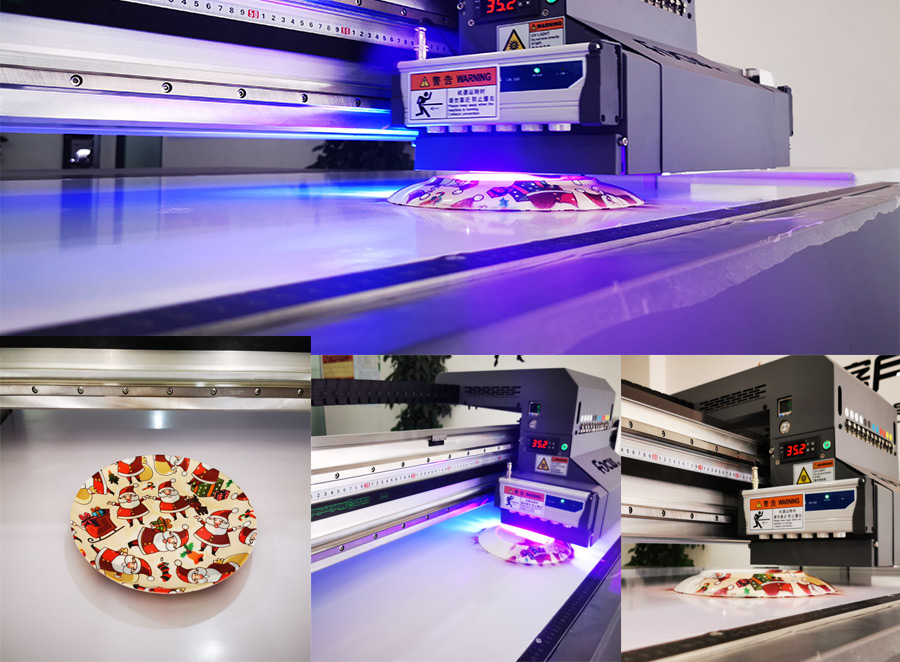

High-jet 10MM printing technology, to achieve a large number of surface material printing, providing perfect solutions for special-shaped materials such as toys, Lego, packaging, gifts, handicrafts, and other industries.

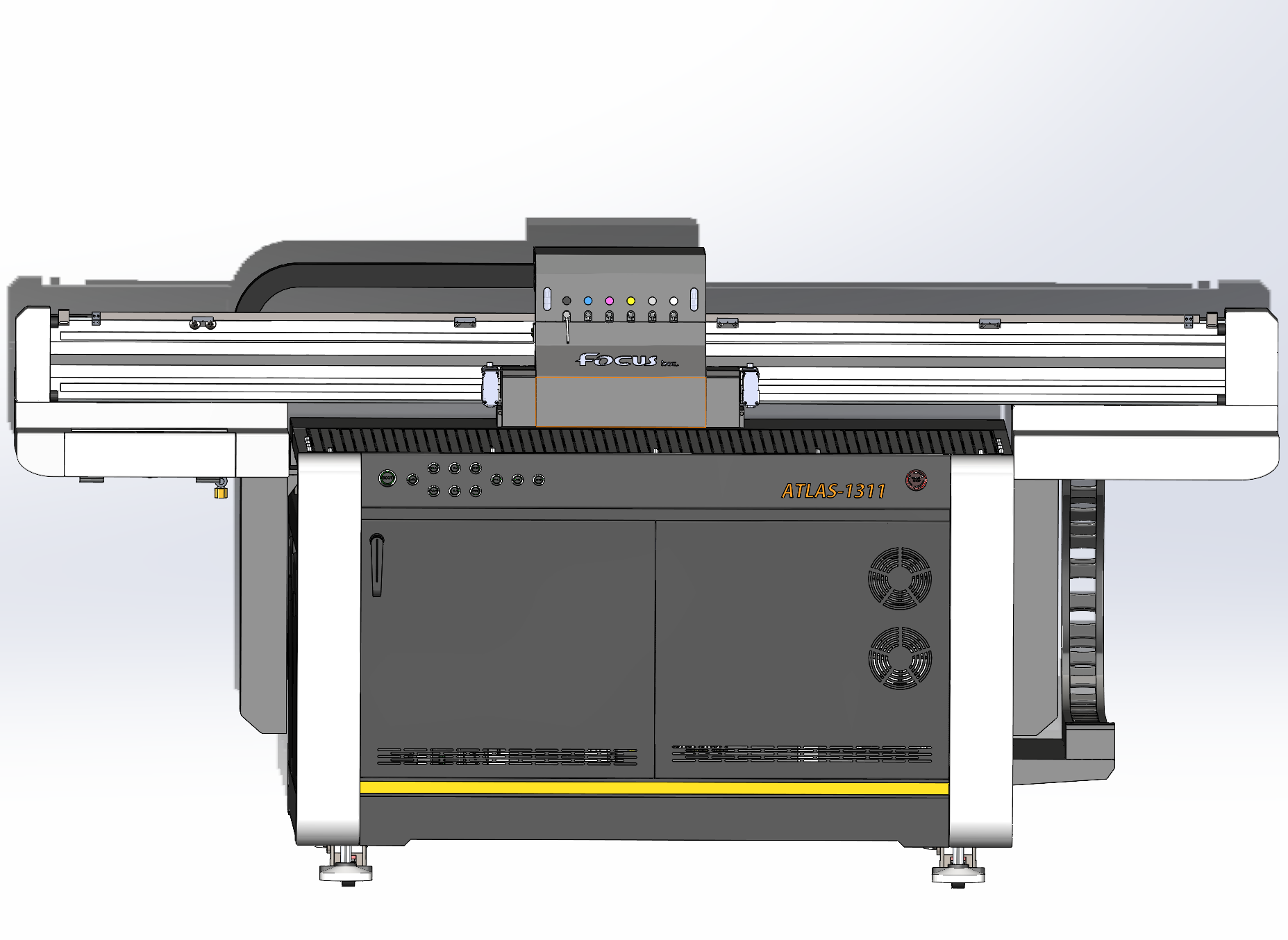

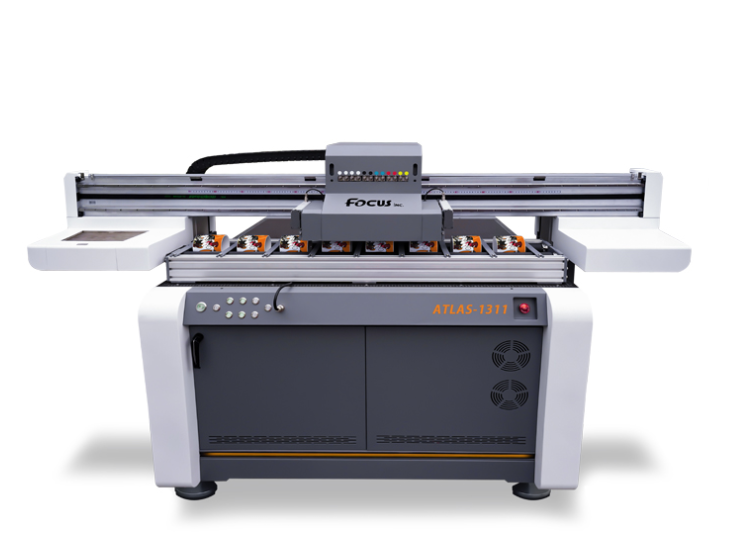

Appearance display

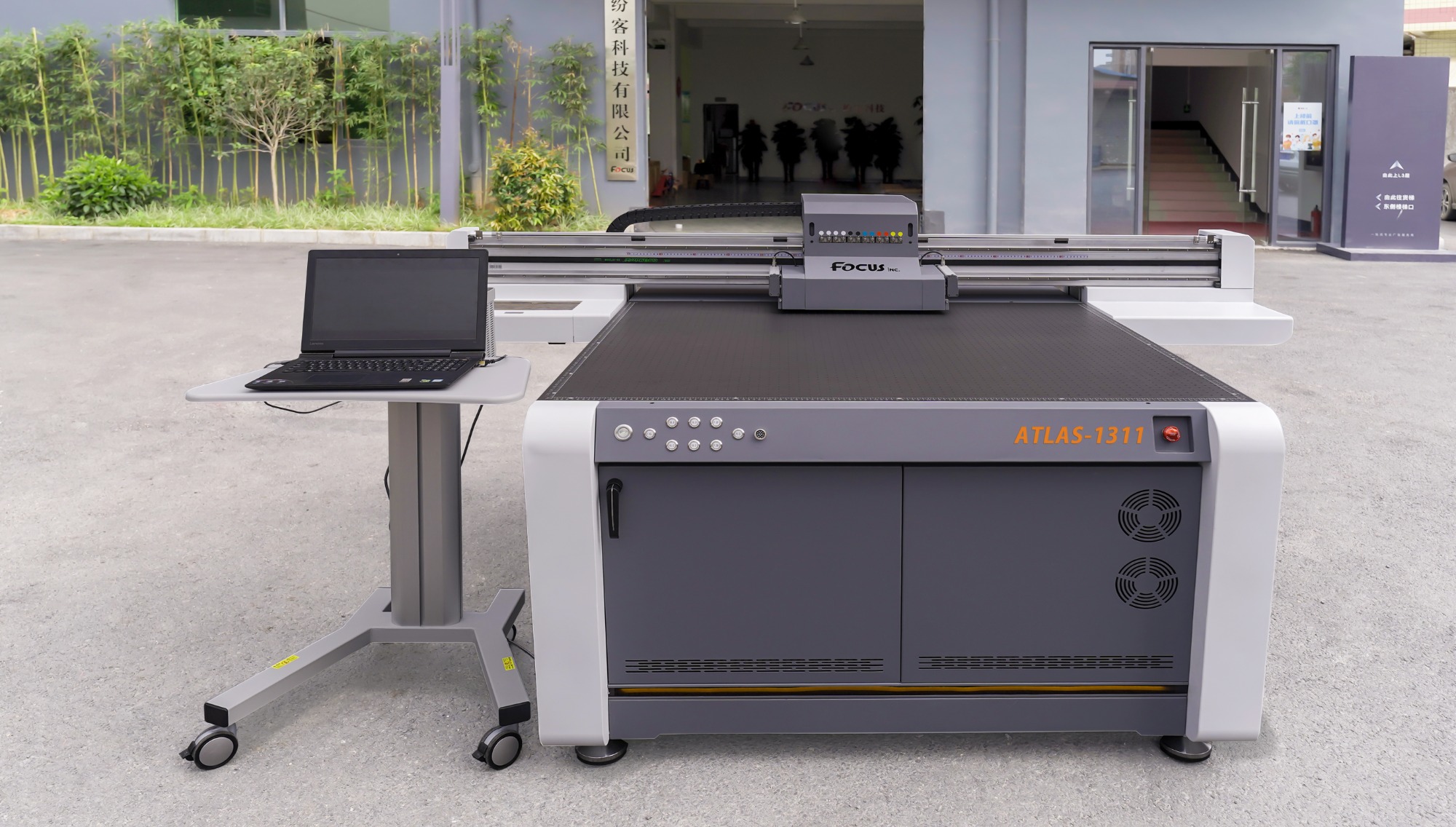

Internationally popular space gray + piano white + bright yellow color design, fashionable frontier

Technical advantages

The printing height is 320MM. Print more possibilities.

High-jet 10MM printing technology,
to achieve various printing on the different substrates.

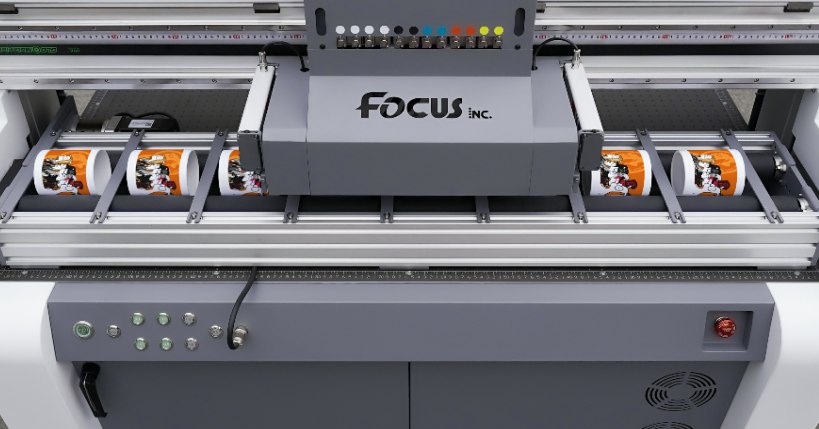

Independent servo motor cylindrical printing technology.

Basic configuration parameters

Focus Inc. Atlas-1311 Specifications
Printing method		Piezo ink-jet technology
Print head	Standard cofiguration	3/4pcs * Ricoh Gen5i-TH5241 (All Specification according to Gen5I as follow)
	* Optioncal configuration	RICOH Gen5, Gen6 / TO SHIBA CE4 / EPSON I3200
	Number of nozzles	1,280 staggered, 320 x 4 rows
	Jetting frequency	40kHz (2 levels) 24kHz (4 levels)
	Drop volume	3/6/12/21pl, 3pl (Single drop), 3～12pl (max 21pl) (Multi drop)
Max. droplet height		1~20 mm gap High-Jet technology depending on ink
Print resolution (dots per inch)		720600dpi 720900dpi 7201200dpi 7202400dpi Uni-direction/Bi-dirction
Print Head protection technology		Auto carriage anti-scratch sensor & electromagnetic detect kit
Print Head mainten technology		Positive pressure clean system & keep wet cap station system & clean&Flashing during printing and idle
Media optimize technology		2pcs ionizer eliminator to remove static on media
Media aligment	Automatic aligment	13pcs Automatic zero Margin electric alignment pins
Media height detect	Automatic gap detect	Parameter input & electromagnetic kit
Media	Maximum printing area	52.7 (width) × 51.1 (length) in. (1,340 × 1,140 mm)
	Maximum load size	53.3 (width) × 44.8 (length) in. (1,355 × 1650 mm)
	Maximum thickness	12.5 in. (320 mm)
	Maximum weight	143 lbs/m2 (65 kg/m2)
Ink	Type	UV Curable Ink, Solvent, Aqueous
	Color	KCMY+W+VARNISH / W+KCMY / KCMY+VARNISH
	Ink tank capacity	1500ml per color
	Sub Ink tank capacity	50 ml per color
Ink process unit	Ink supply system	Two - Way Outputs Automatic refill negotive pressure
	Ink filt system	10μ filter
	Ink heat system	Automatic sub-ink tank heating
Ink curing unit	Cooling technology	Water circulation cooling
	Curing technology	405nm UV-LED lamp * 3pcs
	UV lamp power	Total 3pcs: 750W (300W2pcs+50W1pcs Adjustable)
Media vacuum system	Vacuum power	800W
	Vacuum area	Up to 4 vacuuming areas individual lay out
	Vacuum control	Electronic button switch control
Add-on jig kit (Optional)	Eletronic Rotary jig	Individual motor electronic control kit, diameter 6mm~250mm adjustable
	Shoes jig	Available
	Custom design jig	Available
Dimensions	Machine size	94.7 (W) × 73.2 (D) × 45.7 (H) in. (2,405 × 1,858 × 1,160 mm)
Dimensions	Packing size	100.4 (W) × 78.8 (D) × 58.7 (H) in. (2,550 × 2,000 × 1,490 mm)
Weight	Net weight	1,430 lb (650 kg)
Weight	Gross weight	1,650 lb (750 kg)
Environment	Temperature	59 to 86 °F (15 to 30 °C)
Environment	Humidity	40 to 80 %
Included items		Enthernet cable, cleaning kit, USB Flash of manuals and installation videos, Ink filter
Connectivity		Enthernet cable
Power requirements		30A Single-phase 220 V, 50HZ
Acoustic noise level		75 dB (A) or less

Software System Requirements
Print control	System	Windows® 7/10 (64 bit) Recommend
(Bundled)	CPU	Intel® Core™ i5, 2.5 GHz or more
	RAM	8 GB or more
	Video card and monitor	A resolution of 1,152 × 854 with 16 bit color or higher
	HDD	Install space 1 GB or more
	HDD	Working space 100 GB

Three-dimensional design more details

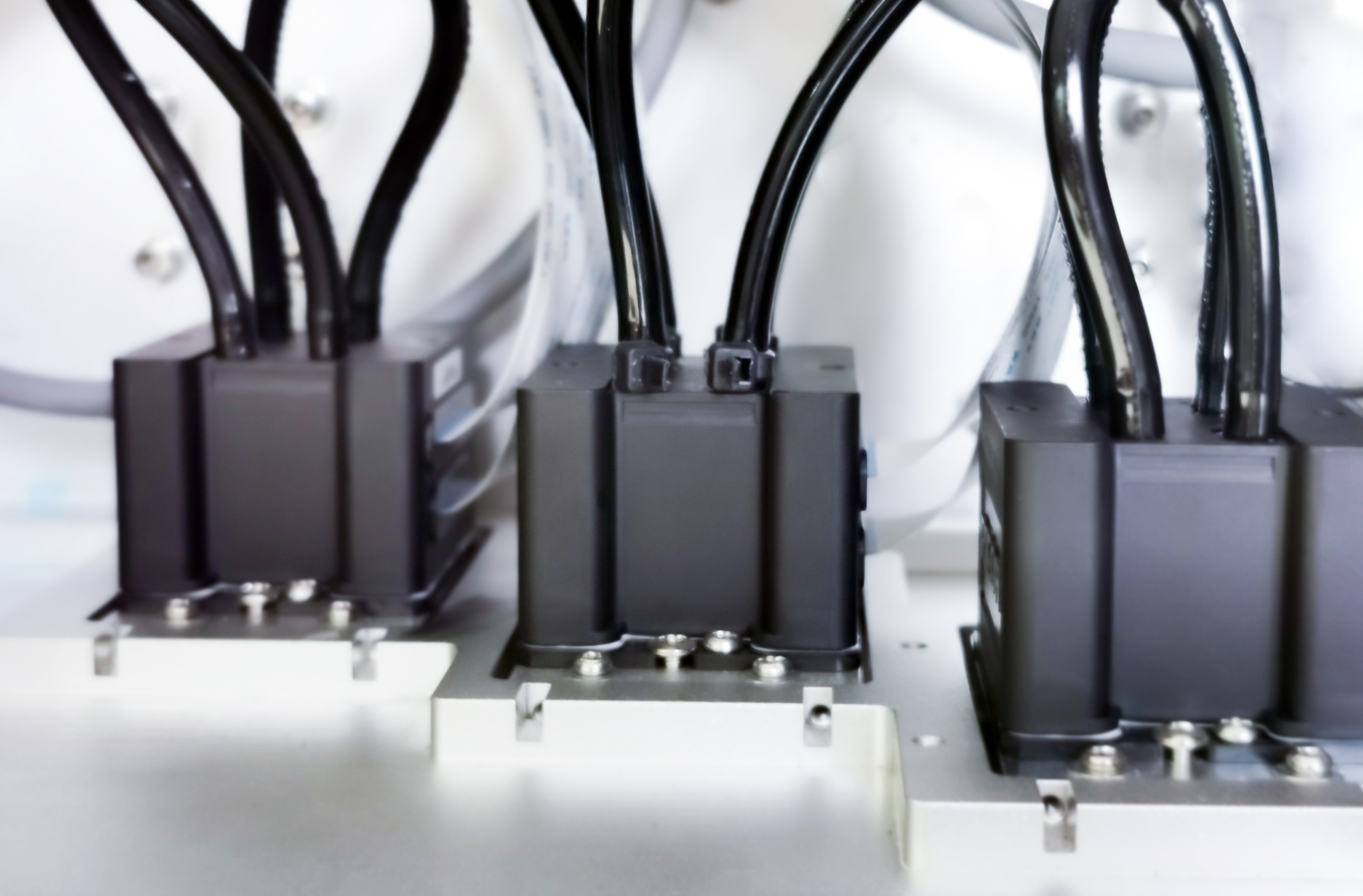

▲ Comes standard with three Ricoh G5I, 1~15mm high-jet printheads, enabling ONE PASS printing with white varnish

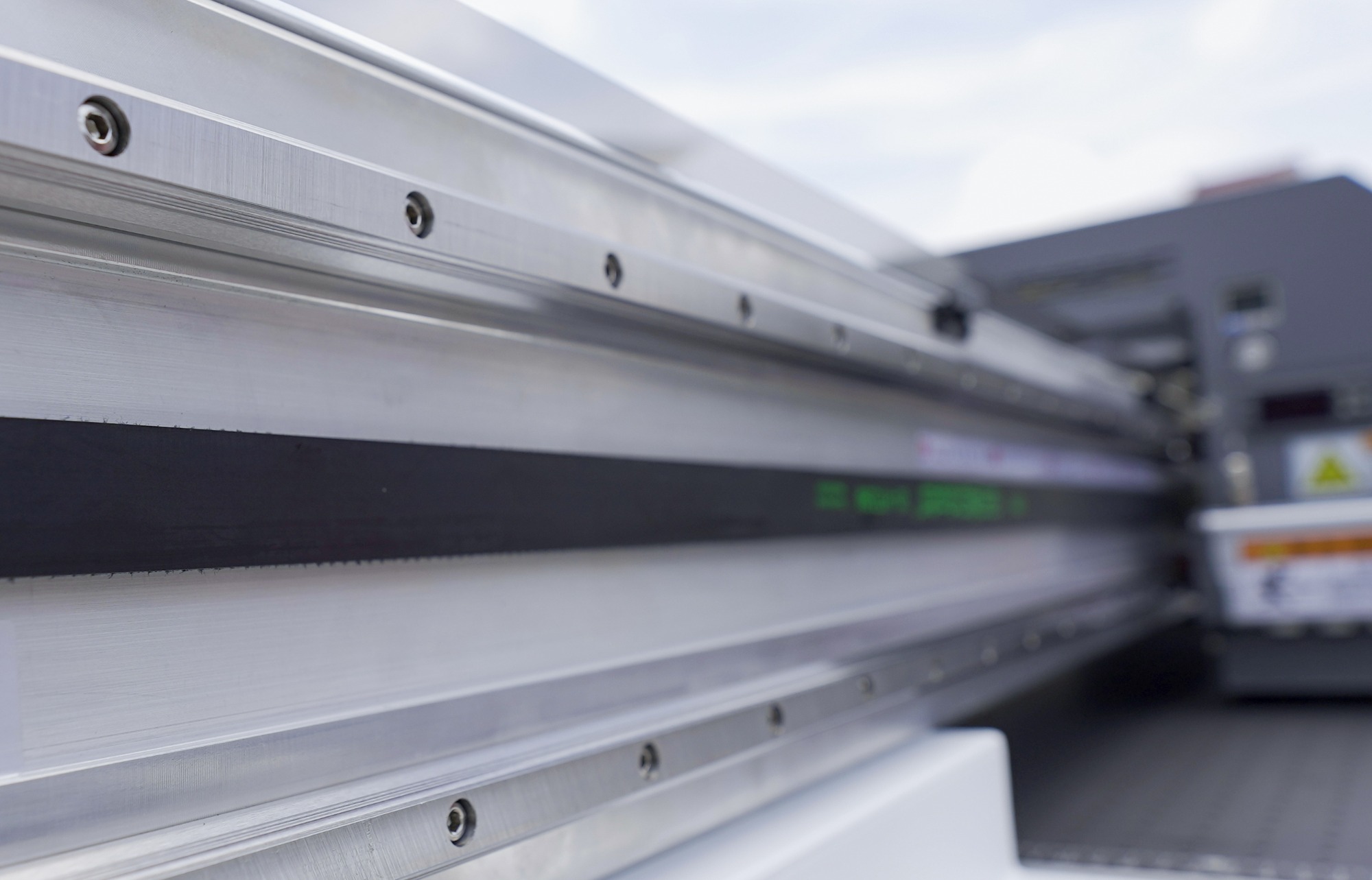

▲ X-axis double guide rail high precision silent type HIWIN guide rail

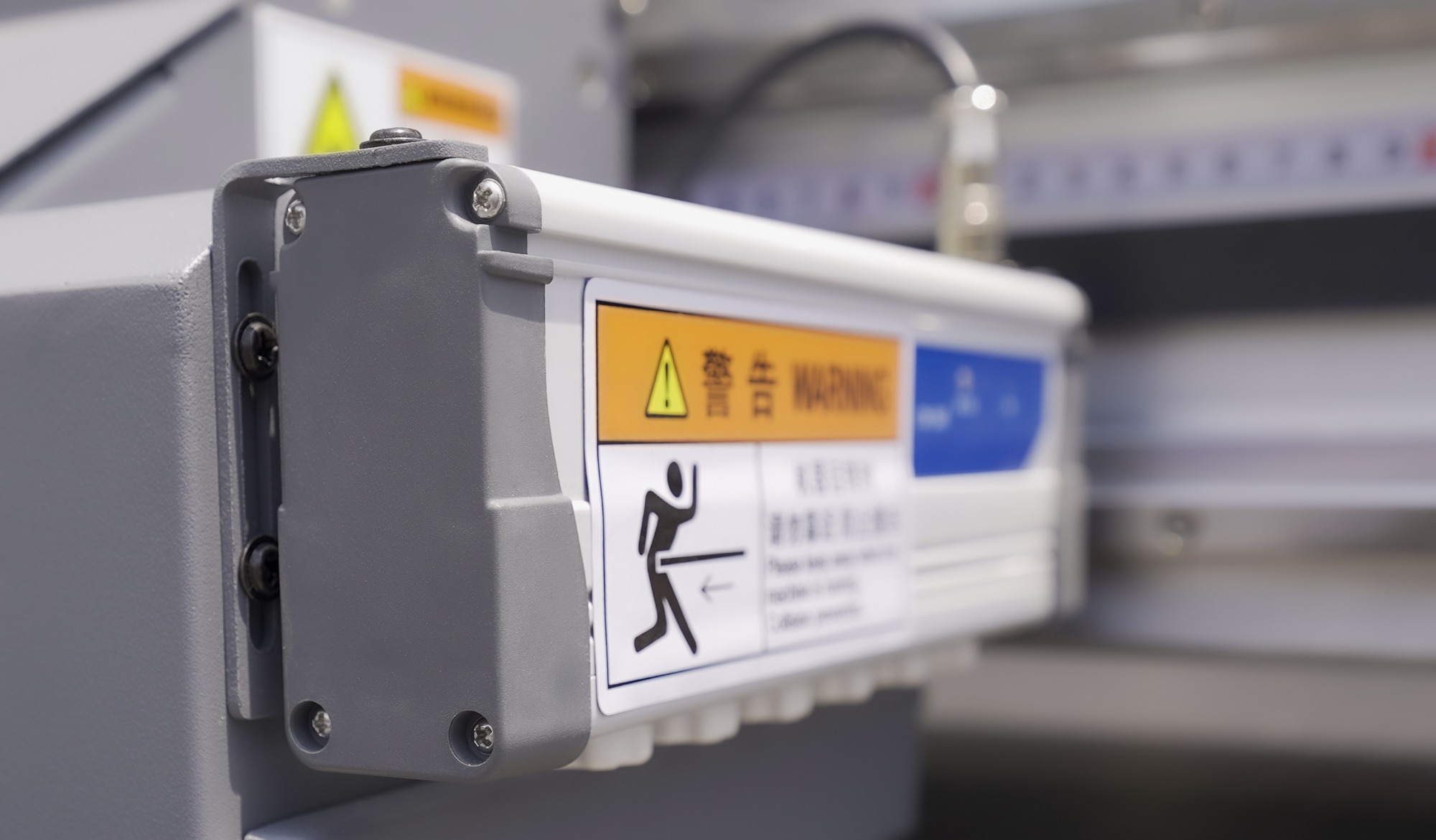

▲ Install static eliminators on the left and right sides

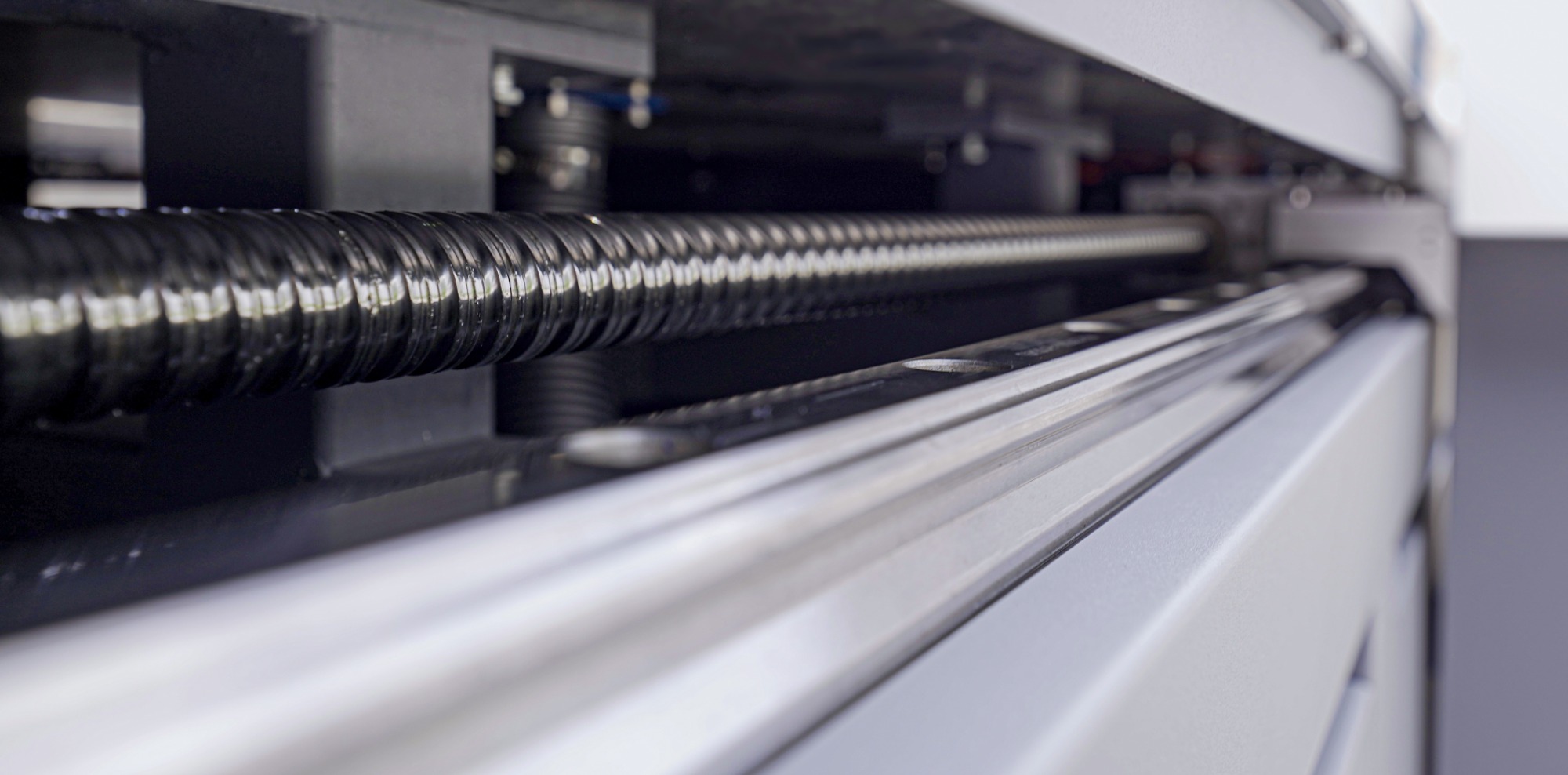

▲ Y-axis 25cm diameter thickened high-precision grinding double screw

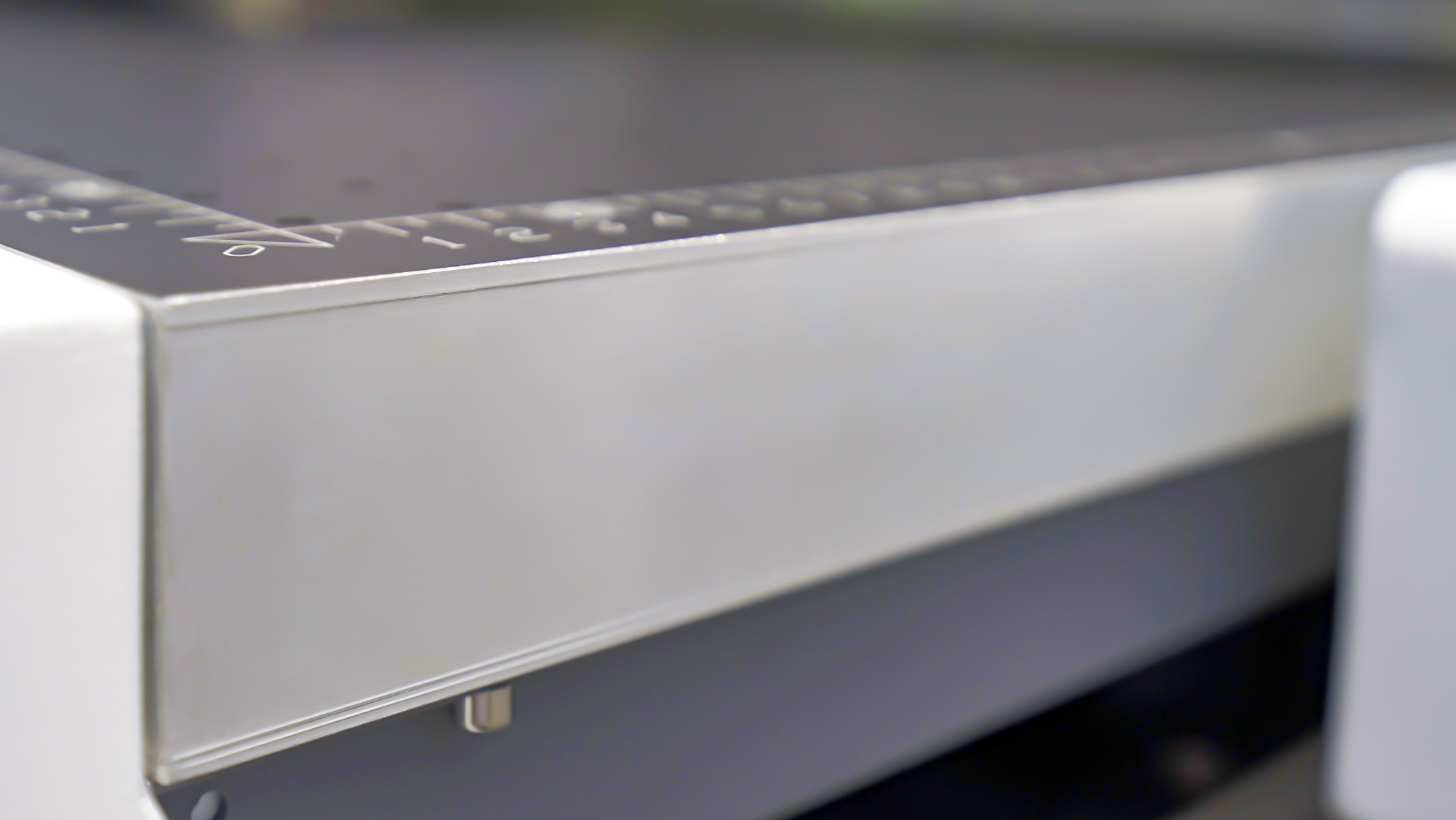

▲ Thickened 36mm ultra-thick printing adsorption aluminum platform to ensure the flatness of the platform

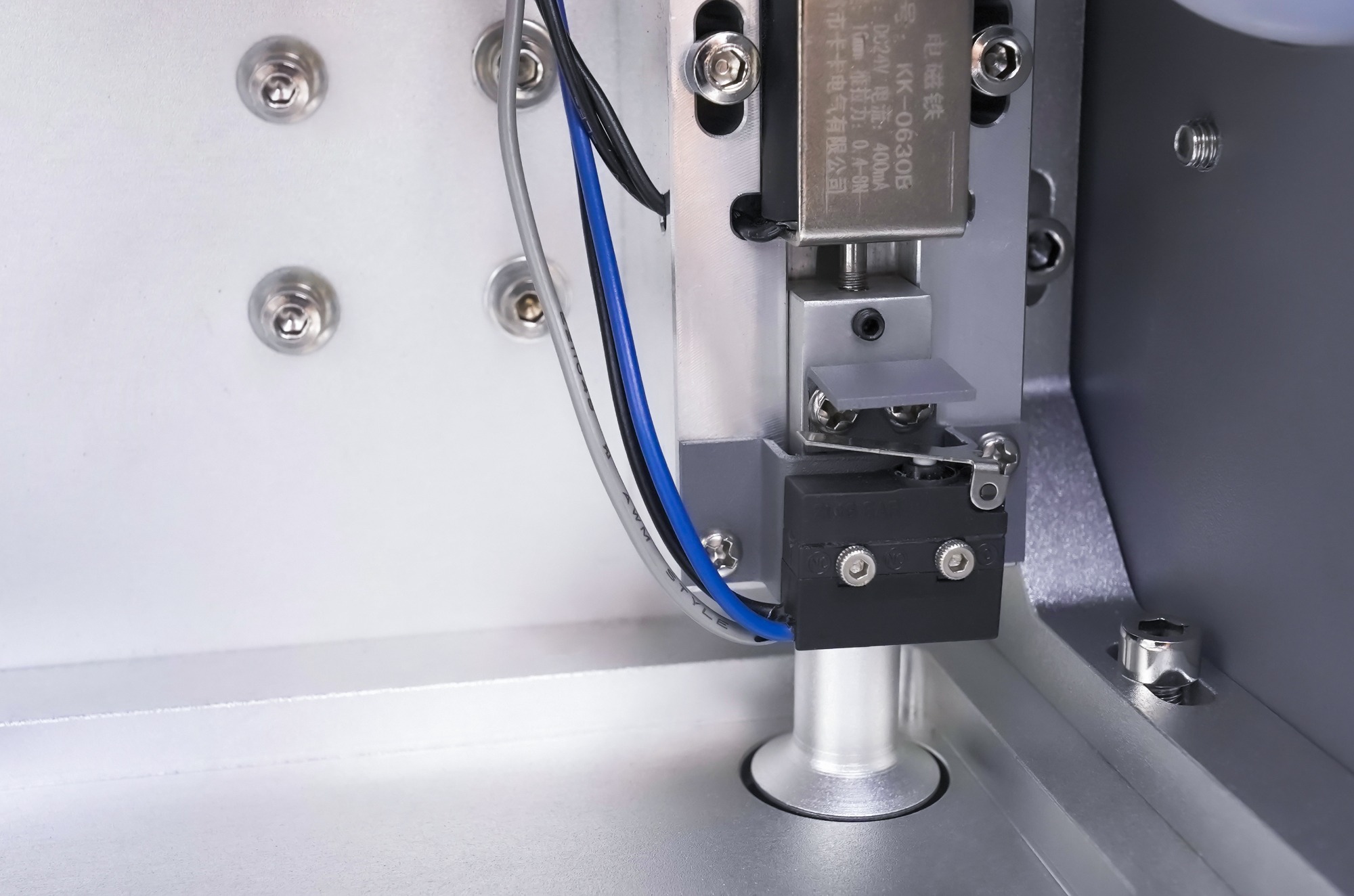

▲ One-key automatic height measurement module

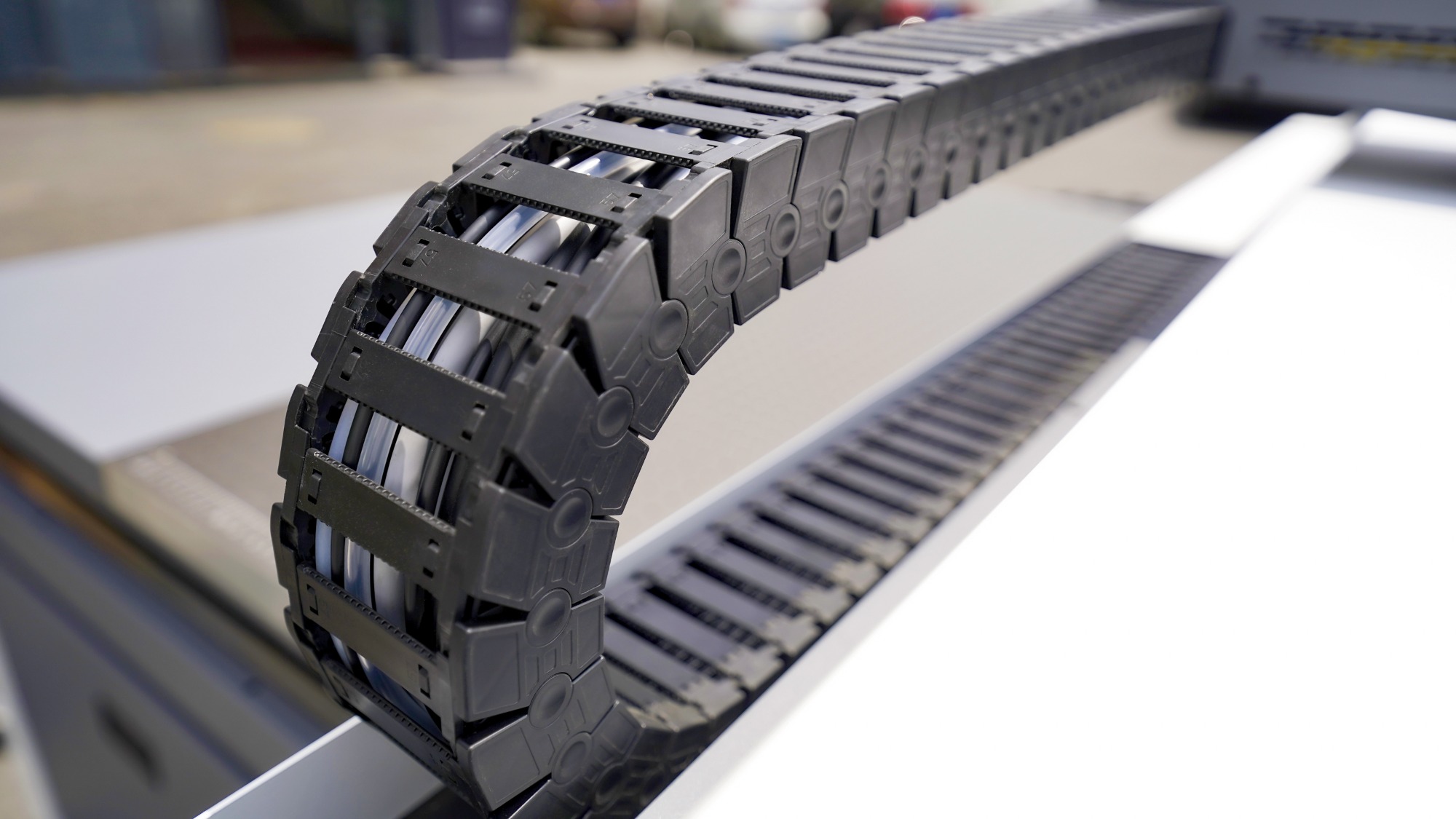

▲ Quiet type 50 million times folding resistance towline, effectively protect the ink circuit and circuit

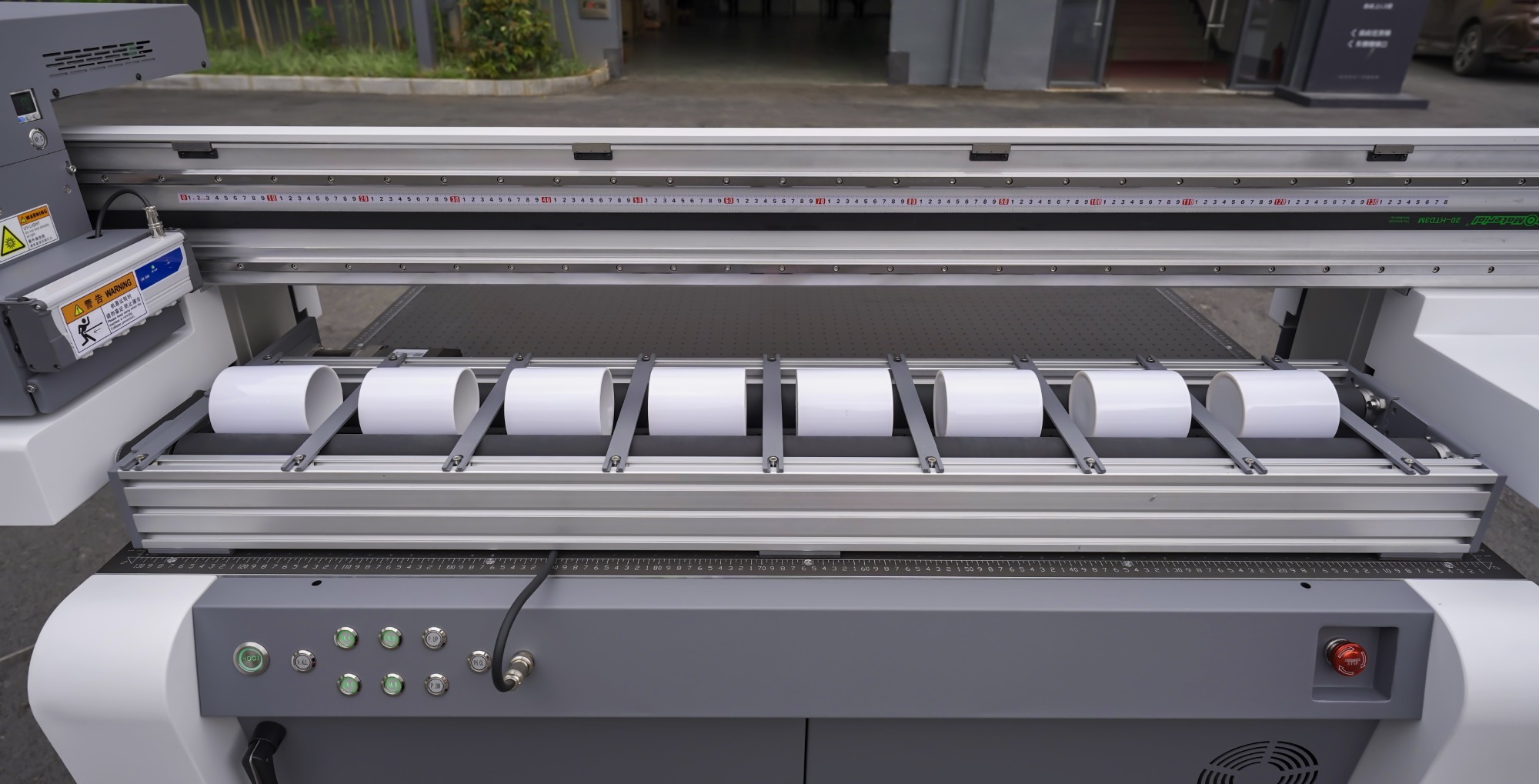

▲ Multiple cylinder prints at once

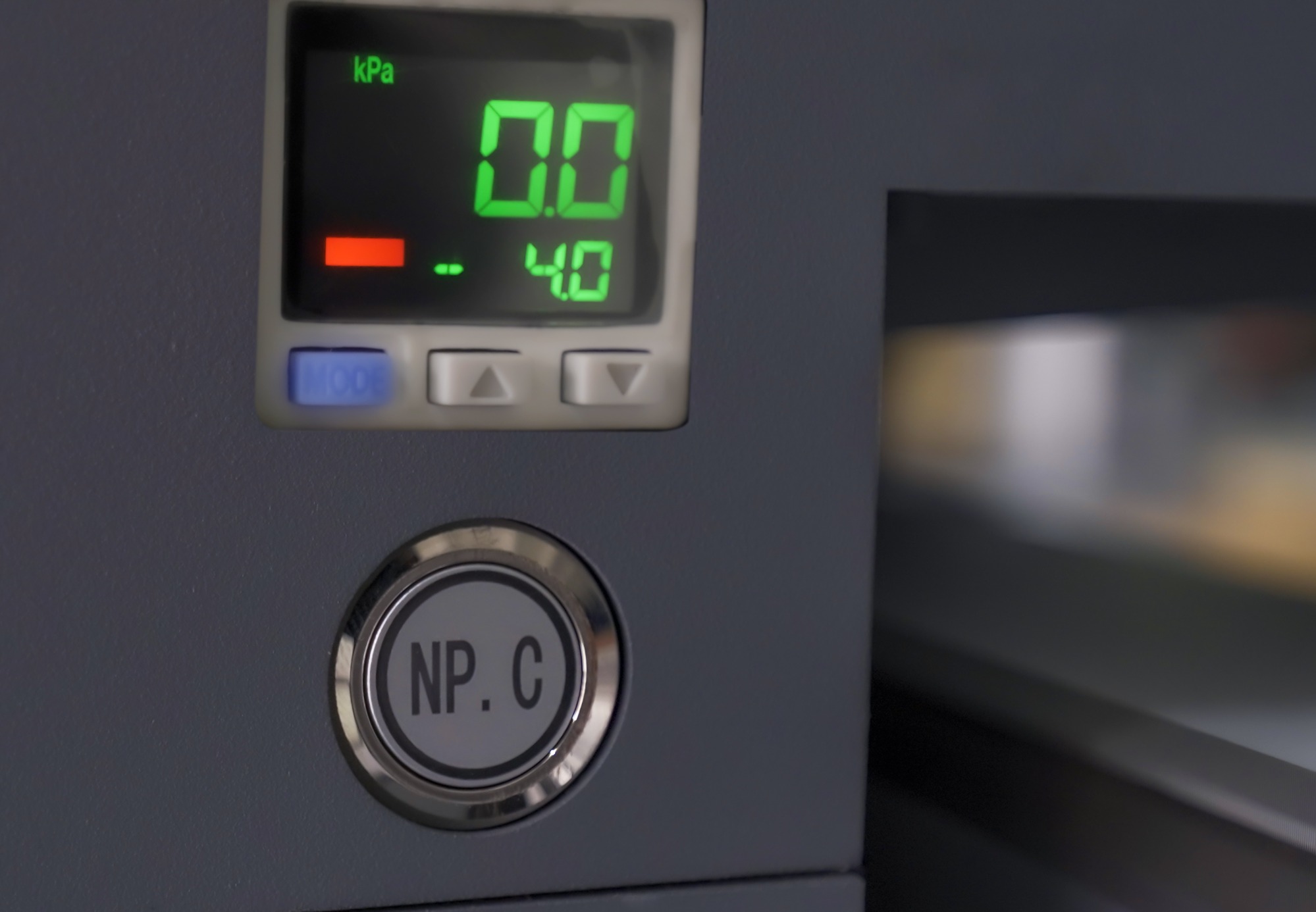

▲ Two-way negative pressure cleaning control system, realizes automatic ink shortage and ink replenishment, and one-key cleaning function

Focus Inc. Atlas-1311 Specifications
Printing method		Piezo ink-jet technology
Print head	Standard cofiguration	3/4pcs * Ricoh Gen5i-TH5241 (All Specification according to Gen5I as follow)
	* Optioncal configuration	RICOH Gen5, Gen6 / TO SHIBA CE4 / EPSON I3200
	Number of nozzles	1,280 staggered, 320 x 4 rows
	Jetting frequency	40kHz (2 levels) 24kHz (4 levels)
	Drop volume	3/6/12/21pl, 3pl (Single drop), 3～12pl (max 21pl) (Multi drop)
Max. droplet height		1~20 mm gap High-Jet technology depending on ink
Print resolution (dots per inch)		720600dpi 720900dpi 7201200dpi 7202400dpi Uni-direction/Bi-dirction
Print Head protection technology		Auto carriage anti-scratch sensor & electromagnetic detect kit
Print Head mainten technology		Positive pressure clean system & keep wet cap station system & clean&Flashing during printing and idle
Media optimize technology		2pcs ionizer eliminator to remove static on media
Media aligment	Automatic aligment	13pcs Automatic zero Margin electric alignment pins
Media height detect	Automatic gap detect	Parameter input & electromagnetic kit
Media	Maximum printing area	52.7 (width) × 51.1 (length) in. (1,340 × 1,140 mm)
	Maximum load size	53.3 (width) × 44.8 (length) in. (1,355 × 1650 mm)
	Maximum thickness	12.5 in. (320 mm)
	Maximum weight	143 lbs/m2 (65 kg/m2)
Ink	Type	UV Curable Ink, Solvent, Aqueous
	Color	KCMY+W+VARNISH / W+KCMY / KCMY+VARNISH
	Ink tank capacity	1500ml per color
	Sub Ink tank capacity	50 ml per color
Ink process unit	Ink supply system	Two-Way Outputs Automatic refill negative pressure
	Ink filt system	10μ filter
	Ink heat system	Automatic sub-ink tank heating
Ink curing unit	Cooling technology	Water circulation cooling
	Curing technology	405nm UV-LED lamp * 3pcs
	UV lamp power	Total 3pcs: 750W (300W2pcs+50W1pcs Adjustable)
Media vacuum system	Vacuum power	800W
	Vacuum area	Up to 4 vacuuming areas individual layout
	Vacuum control	Electronic button switch control
Add-on jig kit (Optional)	Eletronic Rotary jig	Individual motor electronic control kit, diameter 6mm~250mm adjustable
	Shoes jig	Available
	Custom design jig	Available
Dimensions	Machine size	94.7 (W) × 73.2 (D) × 45.7 (H) in. (2,405 × 1,858 × 1,160 mm)
Dimensions	Packing size	100.4 (W) × 78.8 (D) × 58.7 (H) in. (2,550 × 2,000 × 1,490 mm)
Weight	Net weight	1,430 lb (650 kg)
Weight	Gross weight	1,650 lb (750 kg)
Environment	Temperature	59 to 86 °F (15 to 30 °C)
Environment	Humidity	40 to 80 %
Included items		Enthernet cable, cleaning kit, USB Flash of manuals and installation videos, Ink filter
Connectivity		Enthernet cable
Power requirements		30A Single-phase 220 V, 50HZ
Acoustic noise level		75 dB (A) or less

Software System Requirements
Print control	System	Windows® 7/10 (64 bit) Recommend
(Bundled)	CPU	Intel® Core™ i5, 2.5 GHz or more
	RAM	8 GB or more
	Video card and monitor	A resolution of 1,152 × 854 with 16-bit color or higher
	HDD	Install space 1 GB or more
	HDD	Working space 100 GB

More videos...

Send Inquiry
